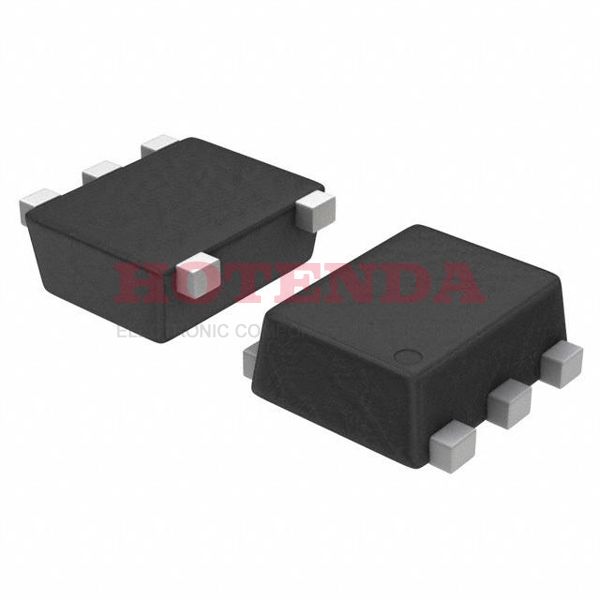

MC74VHC1G08P5T5G Overview
The part comes in SOT-953 packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A AND Gate logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 2V~5.5V. Around -55°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 8mA 8mA. This item is from the 74VHC series. Inputs for this part are 2. Circuits number 1 make up this device. Standing by mode draws 1μA watts of current.
MC74VHC1G08P5T5G Features
AND Gate Logic Type
Operating Temperature: -55°C~125°C
MC74VHC1G08P5T5G Applications
There are a lot of ON Semiconductor
MC74VHC1G08P5T5G Gates and Inverters applications.
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
