74AHCT1G00W5-7 Overview

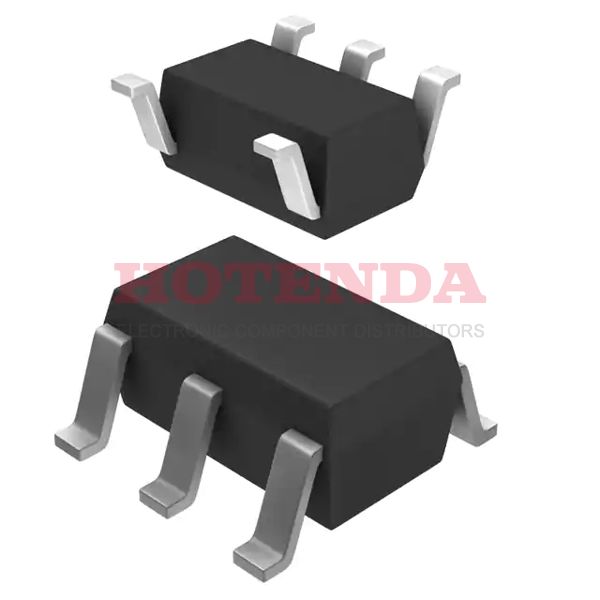

The part comes in SC-74A, SOT-753 packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A NAND Gate logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 4.5V~5.5V. Around -40°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 8mA 8mA. This item is from the 74AHCT series. In total, 5 terminations have occurred. This part is equipped with 1 functions that will greatly enhance the user's experience. It is part of the AHCT/VHCT/VT family of chips. 74AHCT1G00 can help you find device variants. Into the part body are injected 5 pins. Many applications require the use of this logic device with its Surface Mount mounting. The datasheets for the 5 pins explain the functions. Inputs for this part are 2. Parts in quiescent state carry 1μA current. Contains the industry TAPE AND REEL method. Power supplies required for this part are specified in the datasheet as 5V. A device rated at 8mA has 8mA output current. This device has 1 outputs. The operating supply voltage for the chip is specified as 5V volts, which corresponds to the chip voltage.
74AHCT1G00W5-7 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
AHCT/VHCT/VT Family
Quiescent Current: 1μA
Output Current: 8mA
74AHCT1G00W5-7 Applications
There are a lot of Diodes Incorporated
74AHCT1G00W5-7 Gates and Inverters applications.
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
