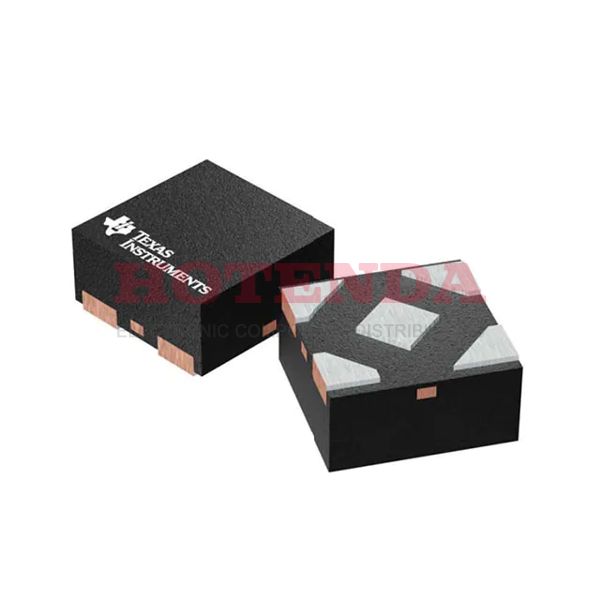

SN74LVC1G38DPWR Overview
Packed in 5-XFDFN Exposed Pad, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the NAND Gate logic principle. To ensure the part's full function, a voltage of 1.65V~5.5V is needed. Extended operating temperature around -40°C~85°C. The part is mounted in Surface Mount. The high and low state of output current is - 32mA. It comes from the 74LVC series. There are 5 terminations totally. The part has 1 functions that significantly boost the user experience. It represents the LVC/LCX/Z product family. If you are looking for device variants, try search with 74LVC1G38. Please refer to the datasheets for 5 pins functions. The part supports 2 inputs. This device is composed of 1 circuits. The maximum current in standby mode is 10μA. It features Open Drain.
SN74LVC1G38DPWR Features
NAND Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
SN74LVC1G38DPWR Applications
There are a lot of Texas Instruments
SN74LVC1G38DPWR Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
