Name: 1N5255B-T
Brand: Diodes Incorporated
SKU: 1N5255B-T
Availability: InStock

new-10%

1N5255B-T

Manufacturer part number:1N5255B-T

Manufacturer:Diodes Incorporated

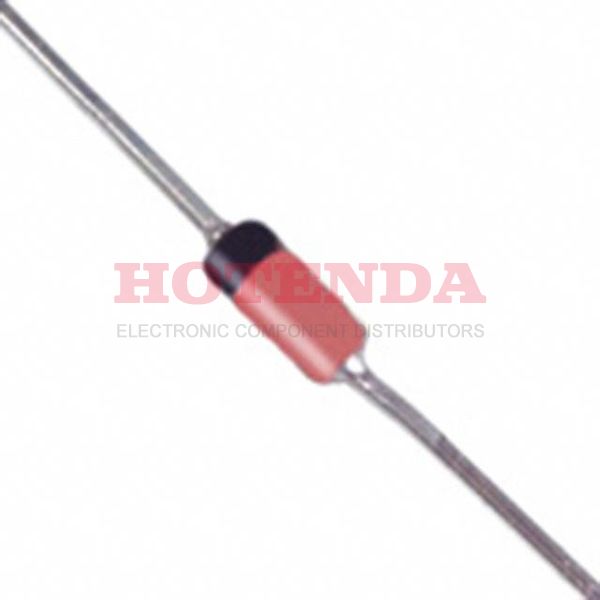

Description:ZENER DIODE 44Ohm ±5% 28V 100nA @ 21V -65°C~200°C 500mW 2 Terminations DO-204AH, DO-35, Axial

Case Package:SOT-23

Datasheet:1N5255B-T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Number of Pins	2
Weight	130.010913mg
Diode Element Material	SILICON
Operating Temperature	-65°C~200°C
Packaging	Tape & Reel (TR)
Published	2012
Tolerance	±5%
JESD-609 Code	e2
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Axial
ECCN Code	EAR99
Terminal Finish	Tin/Silver (Sn96.5Ag3.5)
HTS Code	8541.10.00.50
Power Rating	500mW
Voltage - Rated DC	28V
Max Power Dissipation	500mW
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	1N5255
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	44Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	100nA @ 21V
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	1.1V @ 200mA
Case Connection	ISOLATED
Max Reverse Leakage Current	100nA
Impedance-Max	44Ohm
Test Current	4.5mA
Reference Voltage	28V
Zener Voltage	28V
Voltage Tol-Max	5%
Peak Reverse Current	100nA
Voltage Tolerance	5%
Height	2mm
Length	4mm
Width	2mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Exempt

1N5255B-T Product Details

1N5255B-T Overview

This electrical device requires reverse leakage current of 100nA @ 21V.Tol is the maximum voltage that can be supplied (5%).Reverse leakage current reaches 100nA at its maximum.Zener single diode reaches 1.1V @ 200mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).For this device to operate properly, a peak reverse voltage of 100nA is recommended.
