CY25811SXI Overview

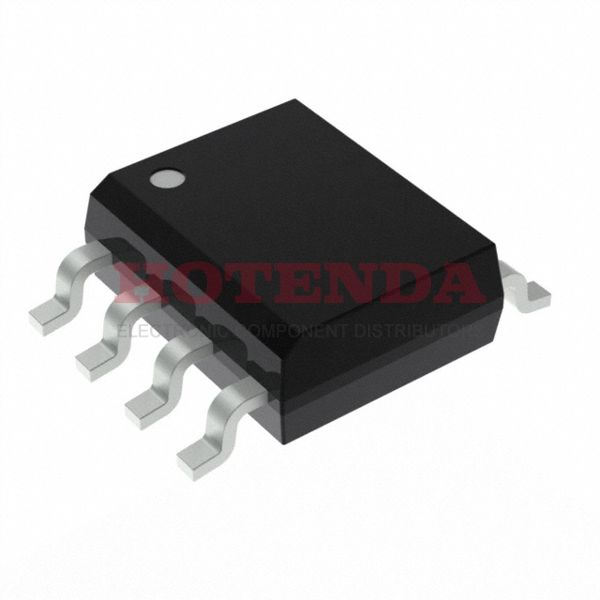

The Tube method is used for packaging clock ICs. The 8-SOIC (0.154, 3.90mm Width) package embeds this Clock PLL. A maximum temperature of 260 can be sustained by this clock generator ic during reflowing. As a result of this, we can find 8 terminations. A voltage of 3.3V should be applied to this electronic frequency generator. In this case, Clock, Crystal, Resonator is designed to be the input of the clock generator. The Surface Mount allows the electrical component to be installed conveniently on the panel. This clock PLL works with a supply voltage of 3.135V~3.465V. Statistics suggest that the ambient temperature be set at -40°C~85°C, which is what is estimated by the test. Clock logic levels are supported by this RF synthesizer. As far as this electronic part is concerned, it can be classified as a Clock/Frequency Synthesizer, Frequency Modulator, Spread Spectrum Clock Generator component. Clock PLL is equipped with 8 pin count. You can find related electrical components to the base part number CY25811. It is possible to connect to the frequency generators via 8 pins. There is a maximum supply voltage of 3.3V that electronic frequency generator can handle. 1 signal outputs allow for maximi1ation of output frequency. At a frequency of 32MHz, the system can achieve high efficiency.
CY25811SXI Features
Available in the 8-SOIC (0.154, 3.90mm Width)
Supply voltage of 3.3V
Operating supply voltage of 3.3V
CY25811SXI Applications
There are a lot of Cypress Semiconductor Corp CY25811SXI Clock Generators applications.
- Sampling clocks for ADC and DAC
- Cell phones
- CPUs
- Aerospace and defense
- Communication infrastructure
- Mixed mode (analog and digital) applications
- Ports
- Signal modulation and demodulation
- Frequency shifting decodes
- DVD recorders
