TBL009-254-10GY-2GY

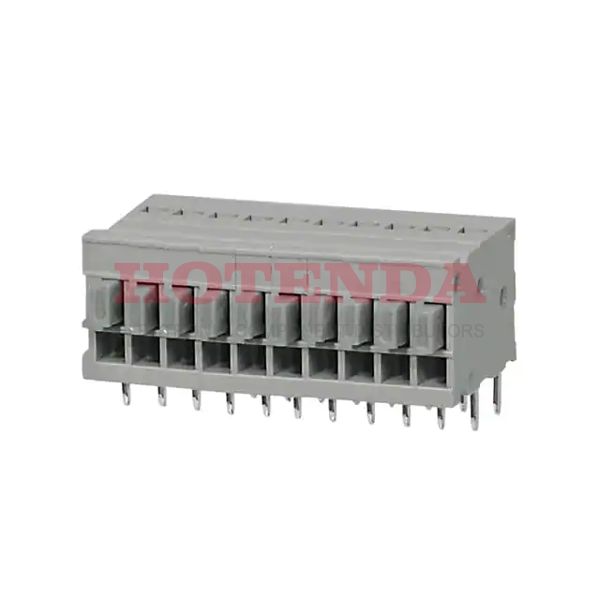

  • TBL009-254-10GY-2GY - 0.100 2.54mm Gray Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screwless - Push Button Clamp 1 Levels 18-26 AWG TBL009-254
  • TBL009-254-10GY-2GY - 0.100 2.54mm Gray Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screwless - Push Button Clamp 1 Levels 18-26 AWG TBL009-254

TBL009-254-10GY-2GY

TBL009-254-10GY-2GY

CUI Devices

0.100 2.54mm Gray Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screwless - Push Button Clamp 1 Levels 18-26 AWG TBL009-254

SOT-23

TBL009-254-10GY-2GY Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 10 Weeks
Mounting Type Through Hole
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Copper Alloy - Tin Plated
Operating Temperature-40°C~105°C
PackagingTray
Series TBL009-254
Feature Interlocking (Side), Push Button Actuated
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Gray
Pitch 0.100 2.54mm
Wire Gauge18-26 AWG
Voltage 150V
Number of Levels 1
Current 5A
Positions Per Level 10
Mating Orientation Horizontal with Board
Wire TerminationScrewless - Push Button Clamp
RoHS StatusRoHS Compliant
In-Stock:3098 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.64000$2.64
500$2.6136$1306.8
1000$2.5872$2587.2
1500$2.5608$3841.2
2000$2.5344$5068.8
2500$2.508$6270

TBL009-254-10GY-2GY Product Details

TBL009-254-10GY-2GY Overview


This device's mounting type is Through Hole.It's packaged in a Tray case.TBL009-254 Series product.Its Interlocking (Side), Push Button Actuated feature makes it more powerful in a number of ways.Running in -40°C~105°C Operating Temperature.

TBL009-254-10GY-2GY Features


TBL009-254 series


TBL009-254-10GY-2GY Applications


There are a lot of CUI Devices
TBL009-254-10GY-2GY Terminal Blocks applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
