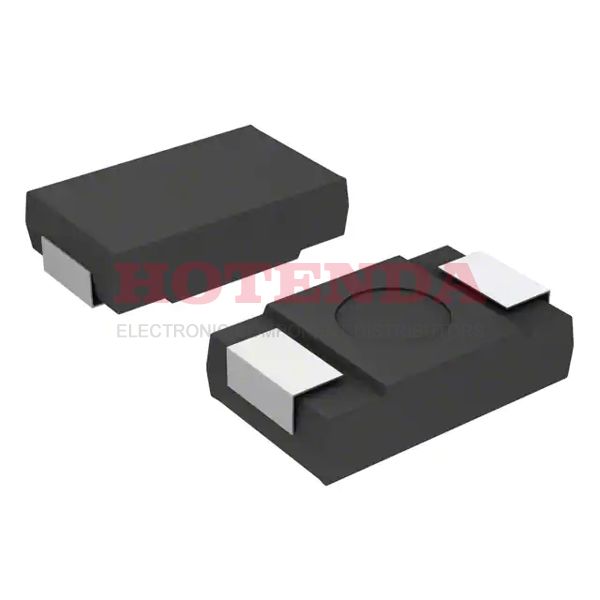

Name: SPSX391M0ER
Brand: Cornell Dubilier Electronics (CDE)
SKU: SPSX391M0ER
Availability: InStock

new-10%

SPSX391M0ER

Manufacturer part number:SPSX391M0ER

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:390μF ±20% 2917 (7343 Metric) 0.083 2.10mm Tape & Reel (TR) 9mOhm SPSX Surface Mount Polymer General Purpose

Case Package:SOT-23

Datasheet:SPSX391M0ER Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Terminal Shape	J BEND
Surface Mount Land Size	0.287Lx0.169W 7.30mmx4.30mm
Operating Temperature	-40°C~105°C
Packaging	Tape & Reel (TR)
Series	SPSX
Published	2013
Size / Dimension	0.287Lx0.169W 7.30mmx4.30mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Polymer
Terminal Finish	Tin (Sn)
Applications	General Purpose
HTS Code	8532.29.00.40
Capacitance	390μF
Voltage - Rated DC	2.5V
Packing Method	TR
ESR (Equivalent Series Resistance)	9mOhm
Polarity	POLARIZED
Lifetime @ Temp	1000 Hrs @ 105°C
Leakage Current	0.0975mA
Ripple Current	3A
Life (Hours)	1000 hours
Tan Delta	0.06
Ripple Current @ High Frequency	3A @ 100kHz
Height Seated (Max)	0.083 2.10mm
Length	7.3mm
Width	4.3mm
RoHS Status	ROHS3 Compliant

SPSX391M0ER Product Details

SPSX391M0ER Overview

Systems need 3A @ 100kHz ripple current at high frequency to be powered.In this electrical device, the ESR (Equivalent Series Resistance) is 9mOhm.An operating temperature of -40°C~105°C is recommended for stable operation.

SPSX391M0ER Features

3A @ 100kHz ripple current on a high frequency
a 9mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -40°C~105°C
