MMWA05P47K-F

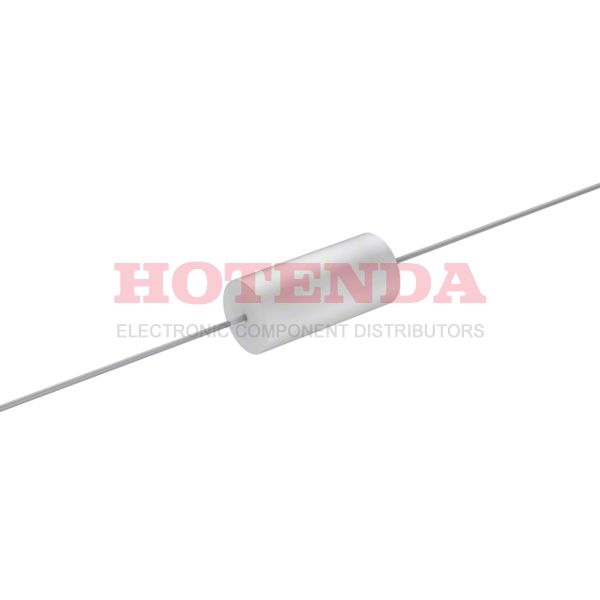

  • MMWA05P47K-F - MMWA 0.47μF Film Capacitor ±10% Axial PC Pins 50V-DC 35V-AC Polyester, Metallized Through Hole
  • MMWA05P47K-F - MMWA 0.47μF Film Capacitor ±10% Axial PC Pins 50V-DC 35V-AC Polyester, Metallized Through Hole

MMWA05P47K-F

MMWA05P47K-F

Cornell Dubilier Electronics (CDE)

MMWA 0.47μF Film Capacitor ±10% Axial PC Pins 50V-DC 35V-AC Polyester, Metallized Through Hole

SOT-23

MMWA05P47K-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~125°C
PackagingBulk
Published 2012
Series MMWA
Size / Dimension 0.319Diax0.685L 8.10mmx17.40mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 35
Capacitance 0.47μF
Voltage - Rated DC 50V
Voltage - Rated AC 35V
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Diameter 600 μm
Life (Hours) 1000 hours
Diameter 8.1mm
Length 17.4mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:2317 items

Pricing & Ordering

QuantityUnit PriceExt. Price

MMWA05P47K-F Product Details

MMWA05P47K-F Overview


-55°C~125°C is the maximum temperature at which the device can operate.

MMWA05P47K-F Features



MMWA05P47K-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) MMWA05P47K-F applications of film capacitors.

  • Industrial and automotive inverters
  • Battery management system
  • Bypassing
  • Compact fluorescent lamps (CFL)
  • Global positioning systems
  • RFI for automotive
  • Lighting
  • Switch mode power supplies
  • Electronic ballasts
  • Coupling, decoupling
