PHE450SD5100JR06L2

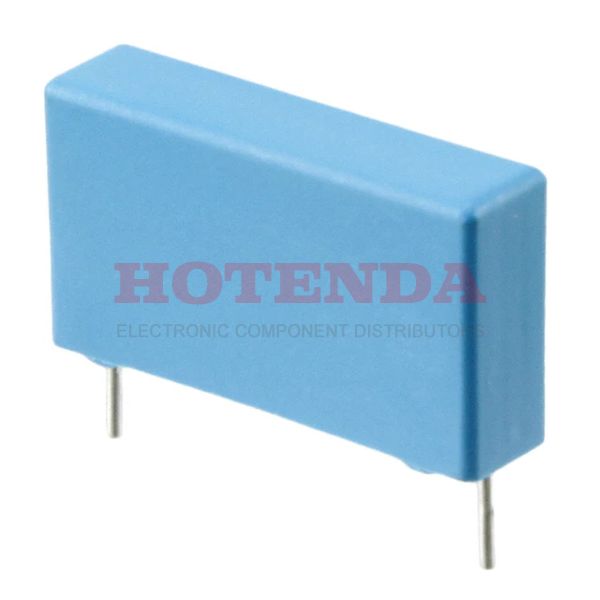

  • PHE450SD5100JR06L2 - PHE450 10000pF Film Capacitor ±5% Radial PC Pins 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized Through Hole
  • PHE450SD5100JR06L2 - PHE450 10000pF Film Capacitor ±5% Radial PC Pins 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized Through Hole

PHE450SD5100JR06L2

PHE450SD5100JR06L2

KEMET

PHE450 10000pF Film Capacitor ±5% Radial PC Pins 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

PHE450SD5100JR06L2 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 28 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2015
Series PHE450
Size / Dimension 1.024Lx0.256W 26.00mmx6.50mm
Tolerance ±5%
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 700
HTS Code8532.25.00.70
Capacitance 10000pF
Voltage - Rated DC 2000V 2kV
Depth 6.5mm
Voltage - Rated AC 700V
Lead Pitch 22.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.886 22.50mm
Lead Diameter 800 μm
Voltage 2kV
Height 6.5mm
Height Seated (Max) 0.571 14.50mm
Length 26mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:3559 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.88000$1.88
10$1.48500$14.85
100$1.11400$111.4
500$0.84168$420.84

PHE450SD5100JR06L2 Product Details

PHE450SD5100JR06L2 Overview


0.886 22.50mm is the lead spacing of this electrical device.It is capable of operating at -55°C~105°C degrees Celsius.

PHE450SD5100JR06L2 Features




PHE450SD5100JR06L2 Applications


There are a lot of KEMET
PHE450SD5100JR06L2 applications of film capacitors.


  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
