FCP0805H391G

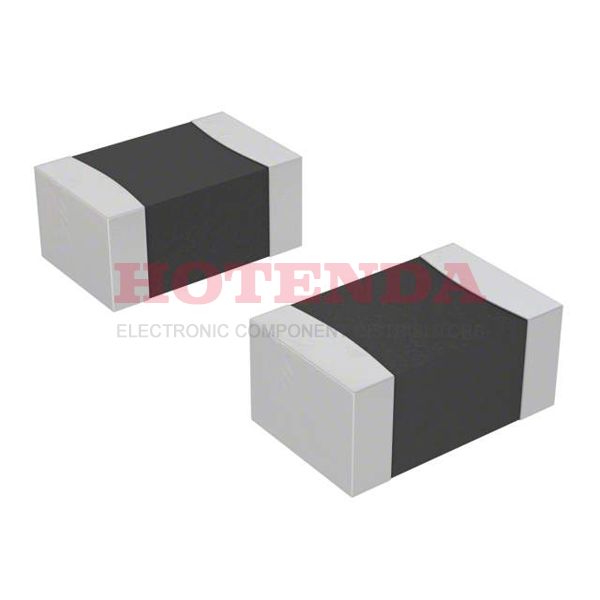

  • FCP0805H391G - FCP 390pF Film Capacitor ±2% 0805 (2012 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount
  • FCP0805H391G - FCP 390pF Film Capacitor ±2% 0805 (2012 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount

FCP0805H391G

FCP0805H391G

Cornell Dubilier Electronics (CDE)

FCP 390pF Film Capacitor ±2% 0805 (2012 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount

SOT-23

FCP0805H391G Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Terminal Shape WRAPAROUND
Dielectric MaterialPolyphenylene Sulfide (PPS)
Weight 5.499807mg
Operating Temperature-55°C~125°C
PackagingBulk
Published 2013
Series FCP
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±2%
JESD-609 Code e1
Pbfree Code yes
Part StatusDiscontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications High Frequency, Switching
HTS Code8532.25.00.45
Capacitance 390pF
Voltage - Rated DC 50V
Packing Method TR
Case Code (Metric) 2012
Case Code (Imperial) 0805
Capacitor Type FILM CAPACITOR
Dielectric PPS
Height Seated (Max) 0.043 1.09mm
Length 2mm
Width 1.25mm
RoHS StatusROHS3 Compliant
In-Stock:3994 items

Pricing & Ordering

QuantityUnit PriceExt. Price

FCP0805H391G Product Details

FCP0805H391G Overview


In a temperature range of -55°C~125°C, the device can be operated.

FCP0805H391G Features



FCP0805H391G Applications


There are a lot of Cornell Dubilier Electronics (CDE) FCP0805H391G applications of film capacitors.

  • Audio/video equipment
  • VCO's
  • Industrial and automotive inverters
  • Coupling, decoupling
  • TV and monitor sets
  • Switch-mode power supplies
  • Satellite TV
  • Matching networks
  • Bypassing
  • Switch mode power supplies
