Name: B81122A1153M
Brand: TDK Electronics Inc.
SKU: B81122A1153M
Availability: InStock

new-10%

B81122A1153M

Manufacturer part number:B81122A1153M

Manufacturer:TDK Electronics Inc.

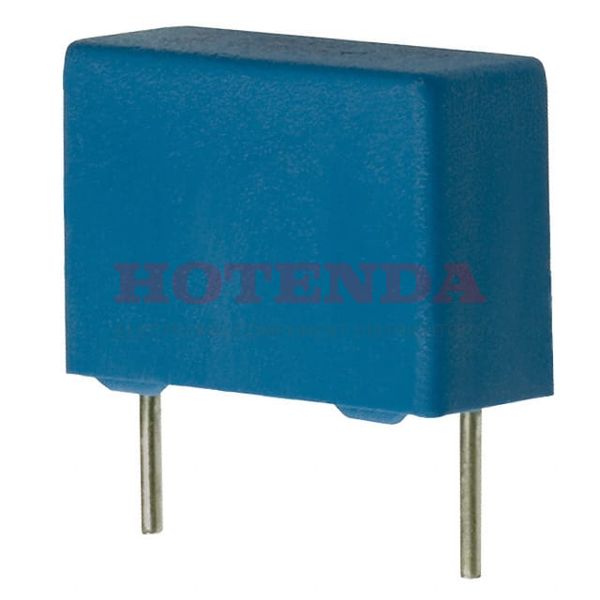

Description:B81122 0.015μF Film Capacitor ±20% Radial PC Pins 250V-AC Polypropylene (PP)

Case Package:SOT-23

Datasheet:B81122A1153M Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP)
Operating Temperature	-40°C~100°C
Packaging	Bulk
Series	B81122
Size / Dimension	0.709Lx0.276W 18.00mmx7.00mm
Tolerance	±20%
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	EMI, RFI Suppression
Additional Feature	RATED AC VOLTAGE (V): 250, SAFETY CLASS Y2
HTS Code	8532.25.00.70
Capacitance	0.015μF
Terminal Pitch	15mm
Voltage - Rated AC	250V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	1000V
Size Code	7128
Rated (AC) Voltage (URac)	250V
Height Seated (Max)	0.492 12.50mm
Length	18mm
Width	7mm
RoHS Status	ROHS3 Compliant

B81122A1153M Product Details

B81122A1153M Overview

For systems to operate, a rated (DC) voltage (URdc) of 1000V must be applied internally.Electrical devices have 0.591 15.00mm lead spacing.System power requires an AC voltage rating of 250V (URac).In addition to operating at -40°C~100°C degrees, the device is capable of operating at other temperatures as well.
