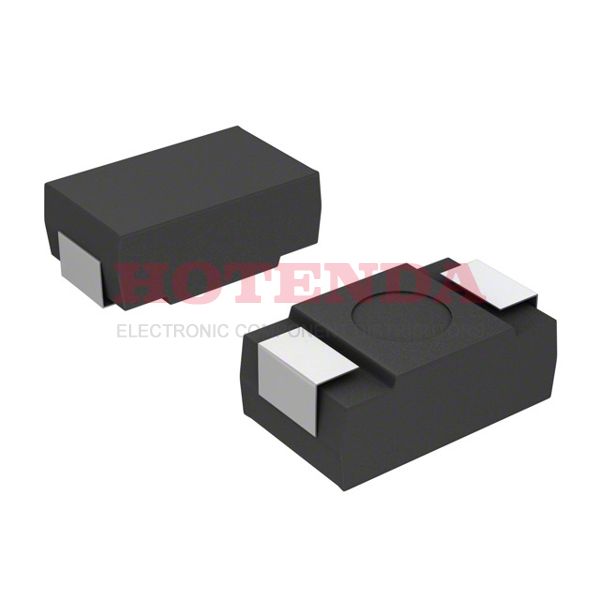

ESRH101M06B Overview
It is necessary to have a ripple current at high frequency of 2.5A @ 100kHz to power systems.ESR (Equivalent Series Resistance) of 15mOhm is observed in this electrical device.The dissipation factor of the part is 0.1 %.Stable operation requires -55°C~105°C as the operating temperature.
ESRH101M06B Features
2.5A @ 100kHz ripple current on a high frequency
a 15mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C
ESRH101M06B Applications
There are a lot of Cornell Dubilier Electronics (CDE) ESRH101M06B applications of aluminum polymer capacitors.
- Buck up Power Supplies of CPU(VRM etc.)
- LED driver power supplies
- Switching Power Supply and DC/DC Converter.
- Miniature high Power Supply.
- Medical equipment
- Phone chargers
- Servers and adapters (laptop power supplies)
- Motherboards
