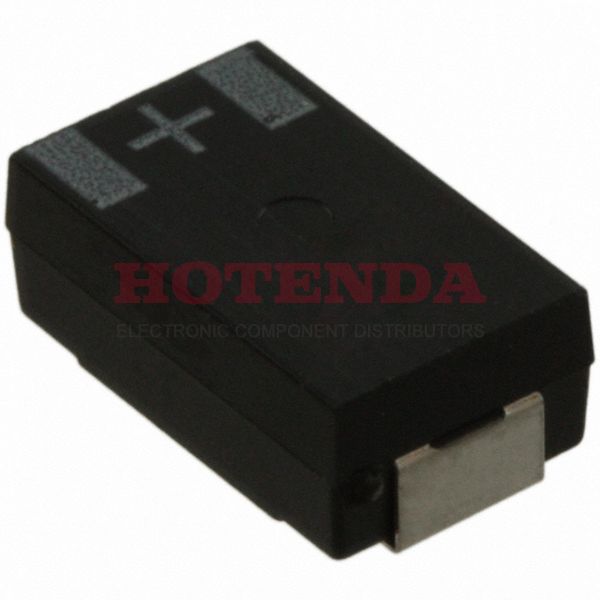

6SW100M

Manufacturer part number:6SW100M

Manufacturer:Rubycon

Description:100μF ±20% 2917 (7343 Metric) 0.106 2.70mm Cut Tape (CT) 9mOhm PC-CON, SW Surface Mount Polymer General Purpose

Case Package:SOT-23

Datasheet:6SW100M Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Terminal Shape	WRAPAROUND
Dielectric Material	Aluminium
Surface Mount Land Size	0.287Lx0.169W 7.30mmx4.30mm
Operating Temperature	-55°C~105°C
Packaging	Cut Tape (CT)
Series	PC-CON, SW
Published	2004
Size / Dimension	0.287Lx0.169W 7.30mmx4.30mm
Tolerance	±20%
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
ECCN Code	EAR99
Type	Polymer
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	General Purpose
Capacitance	100μF
Voltage - Rated DC	6.3V
Packing Method	TR
Voltage - Rated AC	6.3V
Case Code (Metric)	7343
Case Code (Imperial)	2917
ESR (Equivalent Series Resistance)	9mOhm
Polarity	Polar
Rated (DC) Voltage (URdc)	6V
Lifetime @ Temp	2000 Hrs @ 105°C
Leakage Current	0.024mA
Ripple Current	3.5A
Life (Hours)	2000 hours
Tan Delta	0.1
Ripple Current @ High Frequency	3.5A @ 100kHz
Ripple Current (AC)	3.5A
Height	7.3mm
Height Seated (Max)	0.106 2.70mm
Width	4.3mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant

6SW100M Product Details

6SW100M Overview

In order to power systems, 3.5A @ 100kHz ripple current @ High Frequency is needed.This electrical device has an ESR (Equivalent Series Resistance) of 9mOhm.Stable operation requires a rated (DC) voltage (URdc) of 6V.For stable operation, the operating temperature should be -55°C~105°C.

6SW100M Features

3.5A @ 100kHz ripple current on a high frequency
a 9mOhm in ESR (Equivalent Series Resistance) in this electrical device
a rated voltage (DC) of 6V
an operating temperature of -55°C~105°C
