DMM1P47K-F

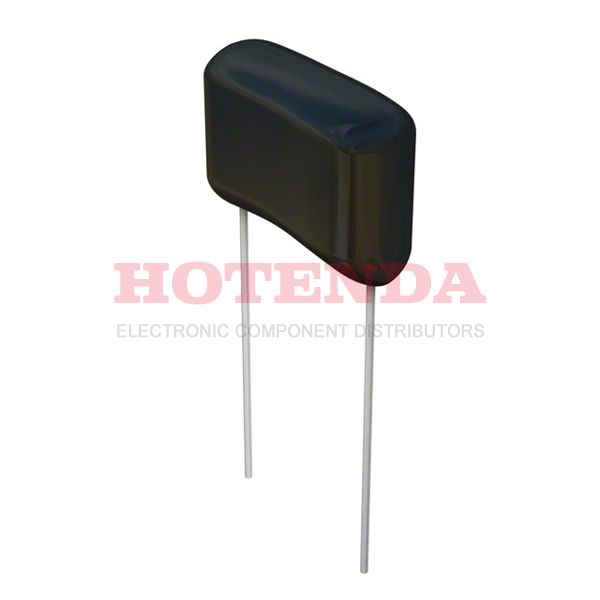

  • DMM1P47K-F - DMM 0.47μF Film Capacitor ±10% Radial PC Pins 100V-DC 65V-AC Polyester, Metallized Through Hole
  • DMM1P47K-F - DMM 0.47μF Film Capacitor ±10% Radial PC Pins 100V-DC 65V-AC Polyester, Metallized Through Hole

DMM1P47K-F

DMM1P47K-F

Cornell Dubilier Electronics (CDE)

DMM 0.47μF Film Capacitor ±10% Radial PC Pins 100V-DC 65V-AC Polyester, Metallized Through Hole

SOT-23

DMM1P47K-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~125°C
PackagingBulk
Published 2013
Series DMM
Size / Dimension 0.709Lx0.236W 18.00mmx6.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 65
HTS Code8532.25.00.10
Capacitance 0.47μF
Voltage - Rated DC 100V
Terminal Pitch15mm
Voltage - Rated AC 65V
Lead Pitch 15.0114mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.591 15.00mm
Lead Diameter 600 μm
Size Code 7124
Life (Hours) 1000 hours
Height 12mm
Height Seated (Max) 0.472 12.00mm
Length 18mm
Width 6mm
RoHS StatusROHS3 Compliant
In-Stock:11801 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.529729$1.529729
10$1.443141$14.43141
100$1.361454$136.1454
500$1.284390$642.195
1000$1.211688$1211.688

DMM1P47K-F Product Details

DMM1P47K-F Overview


Electrical devices have 0.591 15.00mm lead spacing.It is capable of operating at -55°C~125°C degrees Celsius.

DMM1P47K-F Features



DMM1P47K-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) DMM1P47K-F applications of film capacitors.

  • IGBT
  • Switch-mode power supplies
  • Coupling, decoupling
  • Satellite TV
  • VCO's
  • Test and measuring equipment
  • Electronic ballasts
  • Filters
  • Global positioning systems
  • Battery management system
