R82EC3100Z370J

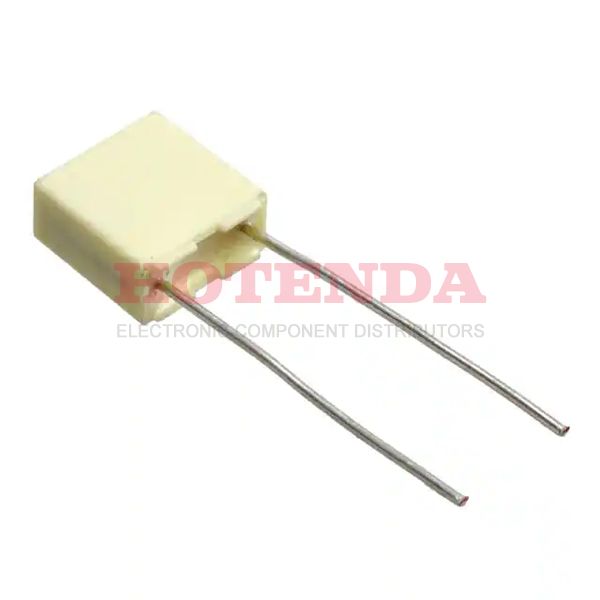

  • R82EC3100Z370J - R82 0.1μF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Through Hole
  • R82EC3100Z370J - R82 0.1μF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Through Hole

R82EC3100Z370J

R82EC3100Z370J

KEMET

R82 0.1μF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Through Hole

SOT-23

R82EC3100Z370J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 29 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~105°C
PackagingBulk
Published 2008
Series R82
Size / Dimension 0.283Lx0.098W 7.20mmx2.50mm
Tolerance ±5%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications Automotive
Additional FeatureRATED AC VOLTAGE(V): 63
Capacitance 0.1μF
Voltage - Rated DC 100V
Depth 2.5mm
Voltage - Rated AC 63V
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Lead Length 17mm
Dielectric PET
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Life (Hours) 2000 hours
Height 6.5mm
Height Seated (Max) 0.256 6.50mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:20082 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.30000$0.3
10$0.21000$2.1
100$0.12570$12.57
500$0.09428$47.14

R82EC3100Z370J Product Details

R82EC3100Z370J Overview


The lead spacing of this electrical device is 0.197 5.00mm.Temperatures of -55°C~105°C are suitable for operating the device.

R82EC3100Z370J Features



R82EC3100Z370J Applications


There are a lot of KEMET R82EC3100Z370J applications of film capacitors.

  • Global positioning systems
  • Filtering
  • IGBT
  • TV and monitor sets
  • Industrial and automotive inverters
  • RF Modules
  • Mobile communications
  • Matching networks
  • Test and measuring equipment
  • VCO's
