Name: 947D641K112CJRSN
Brand: Cornell Dubilier Electronics (CDE)
SKU: 947D641K112CJRSN
Price: 117.17000 USD
Availability: InStock

new

947D641K112CJRSN

Manufacturer part number:947D641K112CJRSN

Manufacturer:Cornell Dubilier Electronics (CDE)

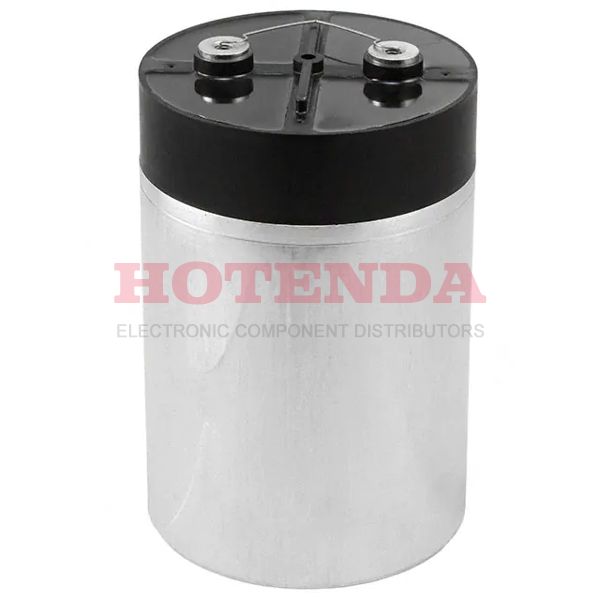

Description:947D 640μF Film Capacitor ±10% Radial, Can Threaded, Female 1.1kV-DC 230V-AC Polypropylene (PP), Metallized Chassis Mount

Case Package:SOT-23

Datasheet:947D641K112CJRSN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Chassis Mount
Mounting Type	Chassis, Stud Mount
Package / Case	Radial, Can
Terminal Shape	BINDING POST
Number of Pins	2
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-45°C~85°C
Packaging	Bulk
Published	2014
Series	947D
Size / Dimension	3.937Dia 100.00mm
Tolerance	±10%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Threaded, Female
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	DC Link, DC Filtering
Capacitance	640μF
Voltage - Rated DC	1.1kV
Reach Compliance Code	unknown
Voltage - Rated AC	230V
Lead Pitch	50.0126mm
Capacitor Type	FILM CAPACITOR
Dielectric	PP
ESR (Equivalent Series Resistance)	2.2mOhm
Lead Spacing	1.969 50.00mm
Rated (DC) Voltage (URdc)	1100V
Diameter	100mm
Height Seated (Max)	5.945 151.00mm
RoHS Status	ROHS3 Compliant

947D641K112CJRSN Product Details

947D641K112CJRSN Overview

System function requires a rated (DC) voltage (URdc) of 1100V.In the device, ESR (Equivalent Series Resistance) is 2.2mOhm.This electrical device has a 1.969 50.00mm lead spacing.-45°C~85°C is the maximum temperature at which the device can operate.
