682MKP275K

  • 682MKP275K - 682MKP275K datasheet pdf and Film Capacitors product details from Illinois Capacitor stock available on our website
  • 682MKP275K - 682MKP275K datasheet pdf and Film Capacitors product details from Illinois Capacitor stock available on our website

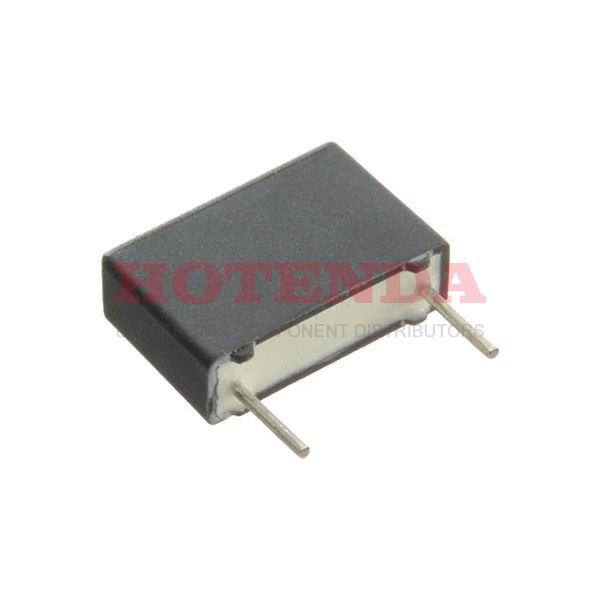

682MKP275K

682MKP275K

Illinois Capacitor

682MKP275K datasheet pdf and Film Capacitors product details from Illinois Capacitor stock available on our website

SOT-23

682MKP275K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 22 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2011
Series MKP
Size / Dimension 0.512Lx0.157W 13.00mmx4.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications EMI, RFI Suppression
Additional FeatureRATED AC VOLTAGE (V): 275
HTS Code8532.25.00.70
Capacitance 6800pF
Voltage - Rated DC 275V
Voltage - Rated AC 310V
Lead Pitch 10.0076mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.394 10.00mm
Height Seated (Max) 0.366 9.30mm
RoHS StatusROHS3 Compliant
Ratings X2
In-Stock:79980 items

Pricing & Ordering

QuantityUnit PriceExt. Price

682MKP275K Product Details

682MKP275K Overview


A 0.394 10.00mm lead spacing is used in this electrical device.In a temperature range of -40°C~110°C, the device can be operated.

682MKP275K Features



682MKP275K Applications


There are a lot of Illinois Capacitor 682MKP275K applications of film capacitors.

  • VCO's
  • Compact fluorescent lamps (CFL)
  • TV and monitor sets
  • Electronic ballasts
  • Audio/video equipment
  • RF Modules
  • Satellite TV
  • Coupling, decoupling
  • Battery management system
  • Mobile communications
