168104J63A-F

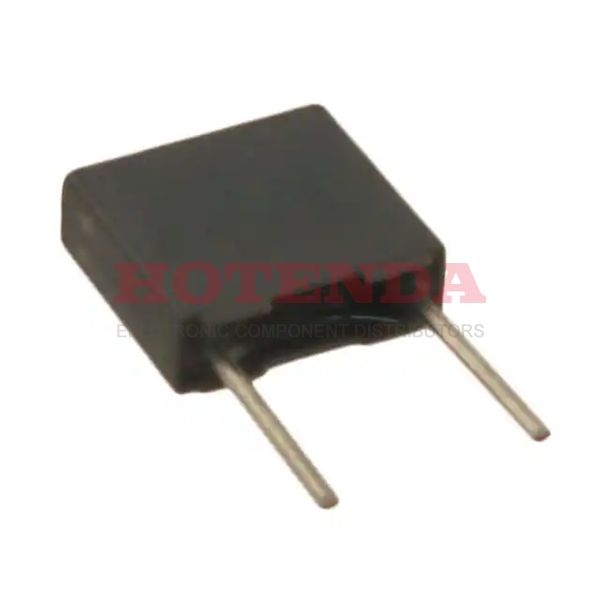

  • 168104J63A-F - 168 0.1μF Film Capacitor ±5% Radial PC Pins 63V-DC 40V-AC Polyester, Metallized PCB, Through Hole
  • 168104J63A-F - 168 0.1μF Film Capacitor ±5% Radial PC Pins 63V-DC 40V-AC Polyester, Metallized PCB, Through Hole

168104J63A-F

168104J63A-F

Cornell Dubilier Electronics (CDE)

168 0.1μF Film Capacitor ±5% Radial PC Pins 63V-DC 40V-AC Polyester, Metallized PCB, Through Hole

SOT-23

168104J63A-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 23 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~125°C
PackagingBulk
Published 2006
Series 168
Size / Dimension 0.283Lx0.098W 7.20mmx2.50mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 0.1μF
Voltage - Rated DC 63V
Depth 2.5mm
Voltage - Rated AC 40V
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Life (Hours) 2000 hours
Height 6.5mm
Height Seated (Max) 0.256 6.50mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:5486 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.962281$0.962281
10$0.907812$9.07812
100$0.856427$85.6427
500$0.807950$403.975
1000$0.762217$762.217

168104J63A-F Product Details

168104J63A-F Overview


Its lead spacing is 0.197 5.00mm.Temperatures of -55°C~125°C allow the device to operate.

168104J63A-F Features



168104J63A-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) 168104J63A-F applications of film capacitors.

  • Filtering
  • Matching networks
  • Bypassing
  • Electronic ballasts
  • Satellite TV
  • Switch-mode power supplies
  • Global positioning systems
  • Filters
  • RFI for automotive
  • Industrial and automotive inverters
