PHE426HB6470JR06

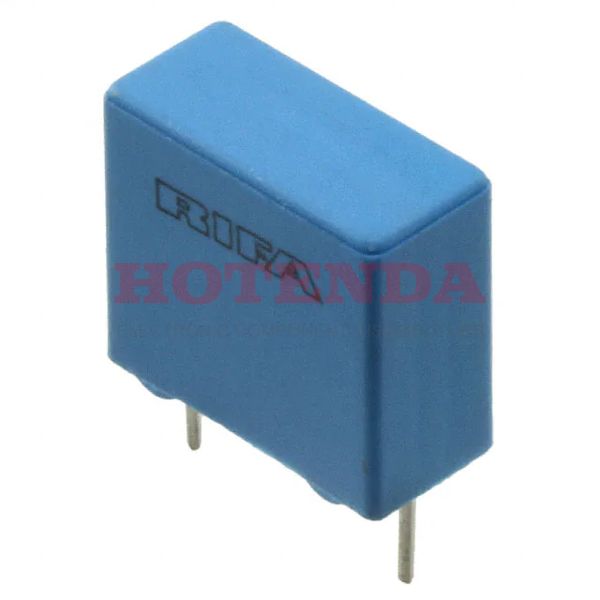

  • PHE426HB6470JR06 - 470nF Film Capacitor 5% Radial Radial 250V-DC 160V-AC Polypropylene PCB, Through Hole
  • PHE426HB6470JR06 - 470nF Film Capacitor 5% Radial Radial 250V-DC 160V-AC Polypropylene PCB, Through Hole

PHE426HB6470JR06

PHE426HB6470JR06

KEMET

470nF Film Capacitor 5% Radial Radial 250V-DC 160V-AC Polypropylene PCB, Through Hole

SOT-23

PHE426HB6470JR06 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount PCB, Through Hole
Package / Case Radial
Number of Pins 2
Dielectric MaterialPolypropylene
PackagingBulk
Tolerance 5%
Termination Radial
Temperature Coefficient50 ppm/°C
Max Operating Temperature105°C
Min Operating Temperature -55°C
Voltage - Rated 250V
Capacitance 470nF
Voltage - Rated DC 250V
Depth 7.5mm
Voltage - Rated AC 160V
Lead Pitch 15mm
Dielectric PP
Lead Diameter 800 μm
Voltage 250V
Lead/Base Style Straight
Height 14.5mm
Height Seated (Max) 14.5034mm
Length 18mm
Width 7.493mm
REACH SVHC No SVHC
Radiation HardeningNo
RoHS StatusRoHS Compliant
In-Stock:6204 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.099457$1.099457
10$1.037224$10.37224
100$0.978512$97.8512
500$0.923125$461.5625
1000$0.870872$870.872

PHE426HB6470JR06 Product Details

PHE426HB6470JR06 Overview


Despite its 50 ppm/°C temperature coefficient, this capacitor has a high current rating.

PHE426HB6470JR06 Features


a temperature coefficient of 50 ppm/°C


PHE426HB6470JR06 Applications


There are a lot of KEMET
PHE426HB6470JR06 applications of film capacitors.


  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
