160273J1000H-F

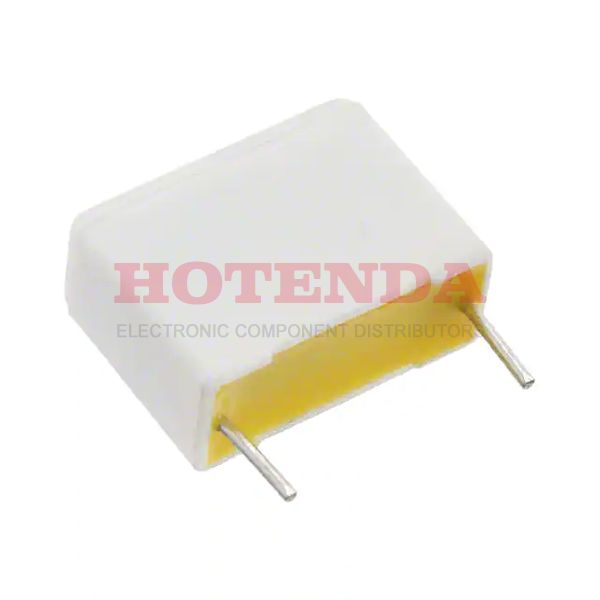

  • 160273J1000H-F - 160 0.027μF Film Capacitor ±5% Radial PC Pins 1kV-DC 250V-AC Polyester, Metallized Through Hole
  • 160273J1000H-F - 160 0.027μF Film Capacitor ±5% Radial PC Pins 1kV-DC 250V-AC Polyester, Metallized Through Hole

160273J1000H-F

160273J1000H-F

Cornell Dubilier Electronics (CDE)

160 0.027μF Film Capacitor ±5% Radial PC Pins 1kV-DC 250V-AC Polyester, Metallized Through Hole

SOT-23

160273J1000H-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2013
Series 160
Size / Dimension 0.709Lx0.295W 18.00mmx7.50mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 250
HTS Code8532.25.00.70
Capacitance 0.027μF
Voltage - Rated DC 1kV
Voltage - Rated AC 250V
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.591 15.00mm
Rated (DC) Voltage (URdc) 1000V
Size Code 7130
Life (Hours) 1000 hours
Height 13.5mm
Height Seated (Max) 0.532 13.50mm
Length 18mm
Width 7.5mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:7021 items

Pricing & Ordering

QuantityUnit PriceExt. Price

160273J1000H-F Product Details

160273J1000H-F Overview


It is essential that systems function with a rated (DC) voltage (URdc) of 1000V.Its lead spacing is 0.591 15.00mm.Devices with a -55°C~105°C temperature capability can be operated.

160273J1000H-F Features


a rated (DC) voltage (URdc) of 1000V

160273J1000H-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) 160273J1000H-F applications of film capacitors.

  • Matching networks
  • Filters
  • IGBT
  • Lighting
  • VCO's
  • Battery management system
  • Global positioning systems
  • Bypassing
  • Snubbering
  • Satellite TV
