Name: B32529C1224K189
Brand: TDK Electronics Inc.
SKU: B32529C1224K189
Price: 0.50000 USD
Availability: InStock

new-10%

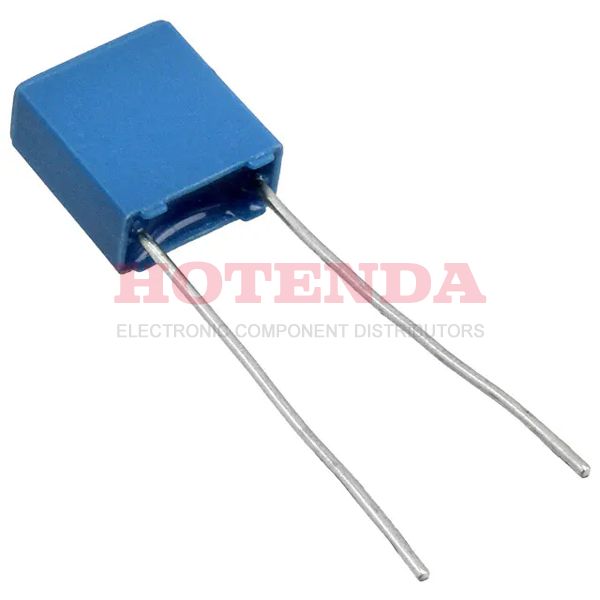

B32529C1224K189

Manufacturer part number:B32529C1224K189

Manufacturer:TDK Electronics Inc.

Description:B32529 0.22μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32529C1224K189 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	27 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	B32529
Size / Dimension	0.283Lx0.138W 7.20mmx3.50mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	0.22μF
Voltage - Rated DC	100V
Packing Method	TR
Terminal Pitch	5mm
Reference Standard	AEC-Q200
Voltage - Rated AC	63V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.197 5.00mm
Rated (DC) Voltage (URdc)	100V
Rated (AC) Voltage (URac)	63V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.315 8.00mm
Length	7.3mm
Width	3.5mm
RoHS Status	ROHS3 Compliant

B32529C1224K189 Product Details

B32529C1224K189 Overview

An internal (DC) voltage of 100V is required for systems to function.This electrical device has a 0.197 5.00mm lead spacing.In order for systems to be powered, a constant (AC) voltage (URac) is required.It is capable of operating at -55°C~125°C degrees Celsius.
