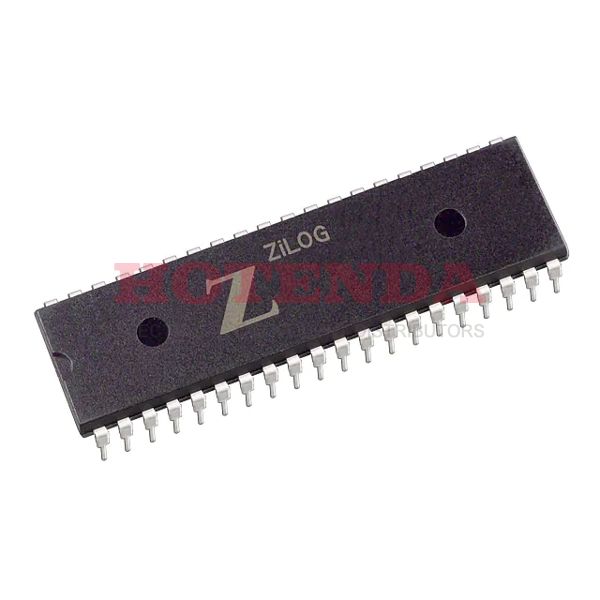

Z8F1621PM020SG Overview
A 40-DIP (0.620, 15.75mm) package is included. In total, it has 29 inputs and outputs. This Microcontroller is mounted using the Through Hole mounting type. Powered by the 8-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of 0°C~70°C TA. Encore!® XP® series components belong to this electrical component. Its program memory size is 16KB 16K x 8. There is a eZ8 Core Processor inside MCU that provides this device with its power. MICROCONTROLLER uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 40 terminations in total. The part works on a 8-bit basis. An output voltage of 3.3V volts is available for this Microcontroller chip. The Microcontroller chip has YES DMA channels. 16kB memory size belongs to the part. Z8F1621 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 20MHz, as long as it is operated at a low power consumption. On the chip, there are 40 pins that are accessible. A total of 40 pins are present. Devices based on the Z8 series of CPUs are embedded in the device. It is built on a Z8 core architecture. This 8 Programmable I/O section allows you to program the device in many different ways depending on what you need. The device has 2 UART channels. In total, there are 8 channels for the ADC on this board. A total of 3 PWM channels are used by the device. Devices like this use an 1-channel PWM controller.
Z8F1621PM020SG Features
40-DIP (0.620, 15.75mm) package
Mounting type of Through Hole
Z8F1621PM020SG Applications
There are a lot of Zilog
Z8F1621PM020SG Microcontroller applications.
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
