Name: XMC4400F100K512ABXQSA1
Brand: Infineon Technologies
SKU: XMC4400F100K512ABXQSA1
Availability: InStock

new-10%

XMC4400F100K512ABXQSA1

Manufacturer part number:XMC4400F100K512ABXQSA1

Manufacturer:Infineon Technologies

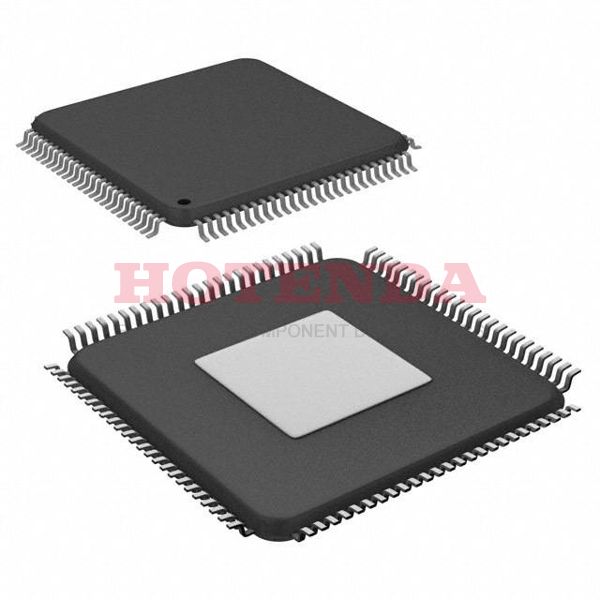

Description:512KB 512K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller XMC4000 Series 100 Pin 120MHz 3.3V 100-LQFP Exposed Pad

Case Package:SOT-23

Datasheet:XMC4400F100K512ABXQSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	100-LQFP Exposed Pad
Surface Mount	YES
Number of Pins	100
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Series	XMC4000
Published	2013
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
ECCN Code	3A991.A.2
Max Power Dissipation	1W
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	120MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.63V
Interface	CAN, Ethernet, I2C, I2S, LIN, SPI, UART, USB
Memory Size	512kB
Oscillator Type	Internal
Number of I/O	55
RAM Size	80K x 8
Voltage - Supply (Vcc/Vdd)	3.13V~3.63V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	DMA, I2S, LED, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	512KB 512K x 8
Connectivity	CANbus, Ethernet, I2C, LINbus, SPI, UART, USB
Bit Size	32
Data Converter	A/D 24x12b; D/A 2x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	4
Core Architecture	ARM
On Chip Program ROM Width	8
RAM (bytes)	81920
Height Seated (Max)	1.6mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

XMC4400F100K512ABXQSA1 Product Details

XMC4400F100K512ABXQSA1 Overview

This Microcontroller comes in a 100-LQFP Exposed Pad package. This Microcontroller has 55 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in XMC4000 Series. The size of the program memory of Microcontroller is 512KB 512K x 8. MCU is powered by ARM® Cortex®-M4 Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 100 terminals. Microcontroller comes with 32 bit size. The component always operates in 3.3V supply voltage. MCU chip has YES DMA channels. The part owns 512kB memory size. MCU's frequency is 120MHz. The device works in YES PWM channels. The pin number of the component remains 100. It has 4 timers/counters. It has a ARM core architecture integrated into it.
