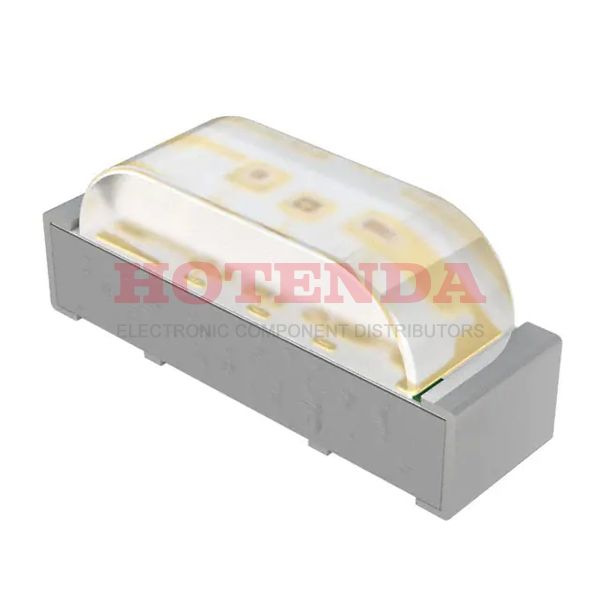

APFA2507LQBDSEEZGKC datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website
SOT-23
APFA2507LQBDSEEZGKC Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount, Right Angle
Package / Case
4-SMD, No Lead
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Series
HELI Colour
Published
2015
Size / Dimension
2.50mm Lx1.00mm W
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
4
ECCN Code
EAR99
Color
Red, Green, Blue (RGB)
HTS Code
8541.40.20.00
Packing Method
TR, 7 INCH
Number of Functions
1
Operating Temperature (Max)
85°C
Operating Temperature (Min)
-40°C
Configuration
Common Anode
Voltage - Forward (Vf) (Typ)
1.8V Red 2.7V Green 2.7V Blue
Viewing Angle
110° Red, 130° Green, 140° Blue
Optoelectronic Device Type
TRIPLE COLOR LED
Current - Test
2mA Red 2mA Green 2mA Blue
Lens Style
Rectangle with Domed Top
Lens Size
2.10mmx0.70mm
Luminous Intensity
60 mcd
Millicandela Rating
10mcd Red, 60mcd Green, 10md Blue
Lens Transparency
Clear
Wavelength - Peak
630nm Red 515nm Green 460nm Blue
Lens Color
Colorless
Forward Current-Max
0.025A
Wavelength - Dominant
621nm Red 525nm Green 465nm Blue
Height
850μm
RoHS Status
ROHS3 Compliant
In-Stock:7006 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.038156
$1.038156
10
$0.979392
$9.79392
100
$0.923955
$92.3955
500
$0.871656
$435.828
1000
$0.822316
$822.316
APFA2507LQBDSEEZGKC Product Details
The Kingbright APFA2507LQBDSEEZGKC LED Indication - Discrete is a high-performance, reliable, and cost-effective solution for a variety of applications. This LED is a 4-SMD RGB Clear LED with a right-angle package. It features a wide viewing angle of 120°, a low forward voltage of 2.1V, and a high luminous intensity of 2000mcd. The LED is RoHS compliant and has a long life expectancy of up to 100,000 hours. It is suitable for use in a variety of applications, including automotive, industrial, and consumer electronics. The Kingbright APFA2507LQBDSEEZGKC LED Indication - Discrete is an ideal choice for those looking for a reliable and cost-effective LED solution.
