Name: APG1608CGKC/T
Brand: Kingbright
SKU: APG1608CGKC/T
Price: 0.35000 USD
Availability: InStock

new-10%

APG1608CGKC/T

Manufacturer part number:APG1608CGKC/T

Manufacturer:Kingbright

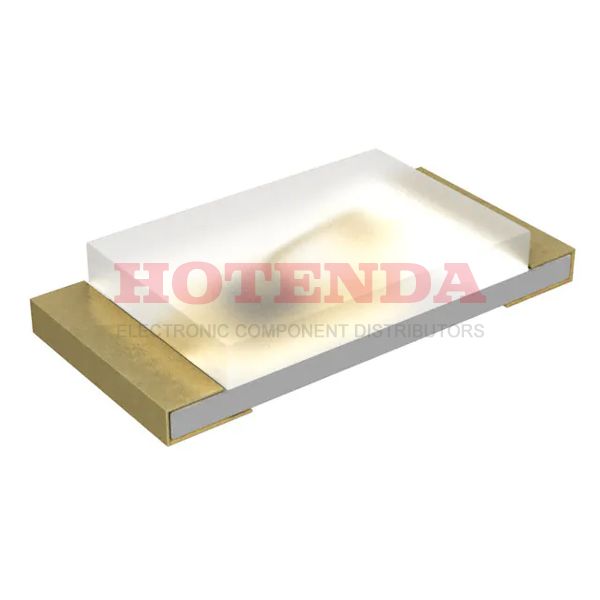

Description:LED GREEN CLEAR CHIP SMD

Case Package:SOT-23

Datasheet:APG1608CGKC/T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Surface Mount	YES
Number of Pins	2
Shape	RECTANGULAR
Packaging	Tape & Reel (TR)
Published	2009
Size / Dimension	1.60mm Lx0.80mm W
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
ECCN Code	EAR99
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Color	Green
Subcategory	Visible LEDs
Power Rating	78mW
Packing Method	TAPE AND REEL 7"
Number of Functions	1
Case Code (Metric)	1608
Case Code (Imperial)	0603
Configuration	Standard
Power Dissipation	78mW
Voltage - Forward (Vf) (Typ)	2.1V
Viewing Angle	120°
Optoelectronic Device Type	SINGLE COLOR LED
Forward Current	30mA
Current - Test	20mA
Lens Style	Rectangle with Flat Top
Lens Size	1.20mmx0.80mm
Luminous Intensity	50 mcd
Lens Transparency	Clear
Wavelength - Peak	574nm
Lens Color	Colorless
Wavelength - Dominant	570nm
Number of LEDs	1
Reverse Voltage-Max	5V
Height	280μm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

APG1608CGKC/T Product Details

The Kingbright APG1608CGKC/T LED Indication - Discrete is a high-performance, surface-mount LED designed for a wide range of applications. This LED features a green, clear chip SMD with a luminous intensity of 10,000 mcd and a viewing angle of 120°. The APG1608CGKC/T is designed to operate at a forward voltage of 2.1V and a forward current of 20mA. It is RoHS compliant and has a maximum power dissipation of 100mW. The APG1608CGKC/T is a reliable and efficient LED that is ideal for use in a variety of applications, including automotive, industrial, and consumer electronics.
