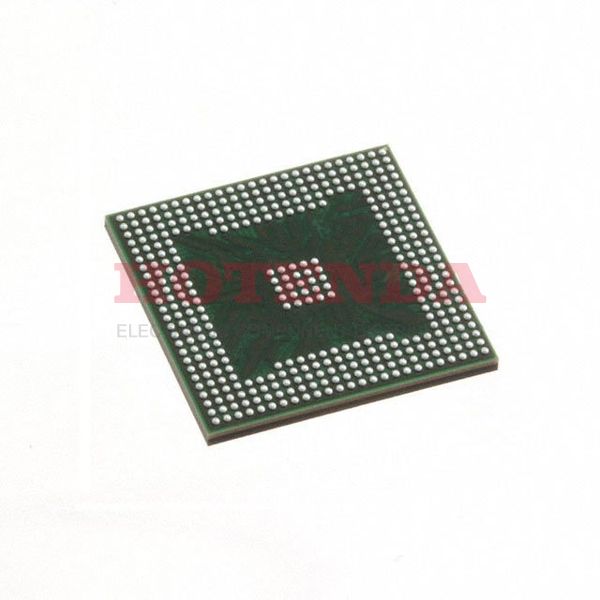

5CGXFC4C6M13C6N Overview
A 383-TFBGA package contains it, and it is available for download. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. The device has 175 I/O ports for more coherent data transfer. There are 50000 logic elements/cells to form a fundamental building block. The supply voltage is 1.1V volts. This FPGA part belongs to the family of Field Programmable Gate Arrays. The Surface Mount-slot on the development board allows you to attach the FPGA module. With a supply voltage of 1.07V~1.13V, this device operates with ease. It is a type of FPGA belonging to the Cyclone? V GX seies. Operating temperatures should be maintained within the 0°C~85°C TJ range at all times when the unit is in use. A device such as this one has 175 outputs built into it. Unlike other FPGA models, this one is contained in Tray for the sake of space saving. Total terminations are 383. There are 2862080 RAM bits that are available with this device. Its base part number 5CGXFC4 can be used to find related parts. This FPGA is built as an array of 18868 LABs/CLBs. Powered by a 1.11.2/3.32.5V power supply, it can be operated by almost anyone.
5CGXFC4C6M13C6N Features
175 I/Os
Up to 2862080 RAM bits
5CGXFC4C6M13C6N Applications
There are a lot of Intel 5CGXFC4C6M13C6N FPGAs applications.
- Solar Energy
- Industrial Ethernet
- Consumer Electronics
- Medical Electronics
- Digital signal processing
- Data Mining
- Image processing
- Automotive Applications
- Data center hardware accelerators
- Radar and Sensors
