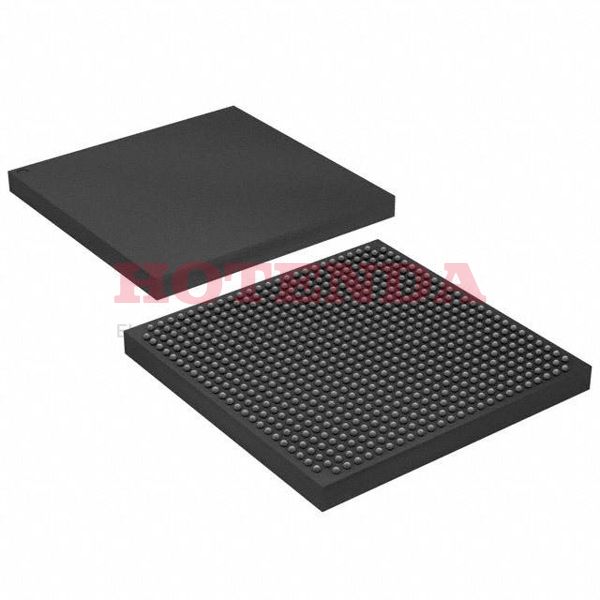

10AX027E4F27E3SG Overview
The package that contains this software is called 672-BBGA, FCBGA. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. Its 240 I/Os help it transfer data more efficiently. There are 270000 logic elements/cells to form a fundamental building block. It is powered from a supply voltage of 0.9V. FPGA parts like this belong to the Field Programmable Gate Arrays family. FPGA modules can be attached to development boards using a Surface Mount-connector. There is a 0.87V~0.98V-volt supply voltage required for the device to operate. There are many types of FPGAs in the Arria 10 GX series, this is one of them. Operating temperatures should be maintained within the 0°C~100°C TJ range at all times when the unit is in use. This device is equipped with 240 separate outputs, which makes it a very versatile device. This FPGA model is contained in Tray for space saving. Fpga chips is designed wFpga chipsh 672 terminations. This device is equipped with 17870848 RAM bits in terms of its RAM si17870848e. A total of 101620 LABs/CLBs are included in this FPGA. Power is supplied to the device by a 0.9V battery.
10AX027E4F27E3SG Features
240 I/Os
Up to 17870848 RAM bits
10AX027E4F27E3SG Applications
There are a lot of Intel 10AX027E4F27E3SG FPGAs applications.
- Camera time adjustments
- Wired Communications
- Scientific Instruments
- Electronic Warfare
- Audio
- Solar Energy
- Wireless Communications
- Device controllers
- Artificial intelligence (AI)
- Video & Image Processing
