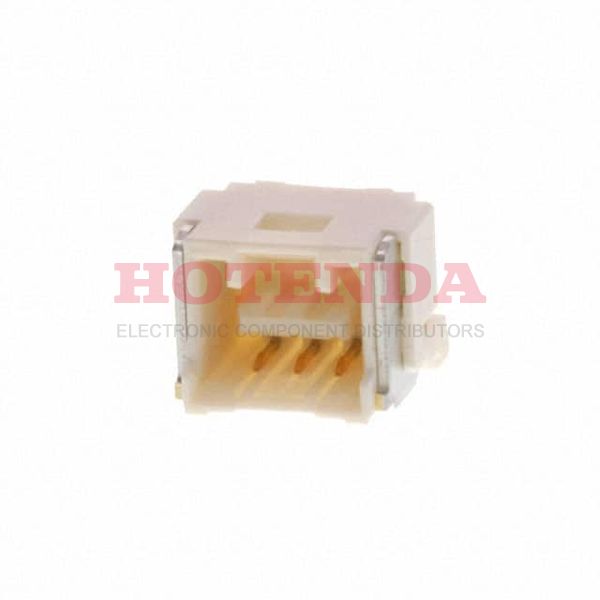

Name: 5054050370
Brand: Molex
SKU: 5054050370
Price: 0.59000 USD
Availability: InStock

new-10%

5054050370

Manufacturer part number:5054050370

Manufacturer:Molex

Description:1 RowsReceptacleSolderCopper AlloySurface MountTape & Reel (TR)GoldResin3 PositionsForked

Case Package:SOT-23

Datasheet:5054050370 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Copper Alloy
Mounting Type	Surface Mount
Insulation Material	Resin
Mounting Option 1	LOCKING
Operating Temperature	-40°C~105°C
Packaging	Tape & Reel (TR)
Published	2015
Series	CLIK-Mate 505405
JESD-609 Code	e3
Feature	Solder Retention
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	3
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows	1
Voltage - Rated	100V
Fastening Type	Latch Holder
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Forked
Current Rating (Amps)	Varies by WireGAuge
Total Number of Contacts	3
Insulation Height	0.285 7.25mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.059 1.50mm
Insulation Color	Beige
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.25 inch
Contact Gender	FEMALE
Body Depth	0.287 inch
Contact Resistance	20mOhm
Insulation Resistance	500000000Ohm
Mating Contact Pitch	0.059 inch
Plating Thickness	7.87μin
Contact Finish Thickness - Mating	8.00μin 0.203μm
Contact Finish Thickness - Post	39.4μin 1.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

5054050370 Product Details

5054050370 Overview

Packaging for this item is Receptacle.There is a Surface Mount mounting type for the device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is from the CLIK-Mate 505405 Series.This device may be used for the purpose of Automotive, General Purpose, Industrial, Lighting, Medical.A number of benefits can be derived from the Solder Retention feature of this application.As a result, the device runs at -40°C~105°C Operating Temperature.
