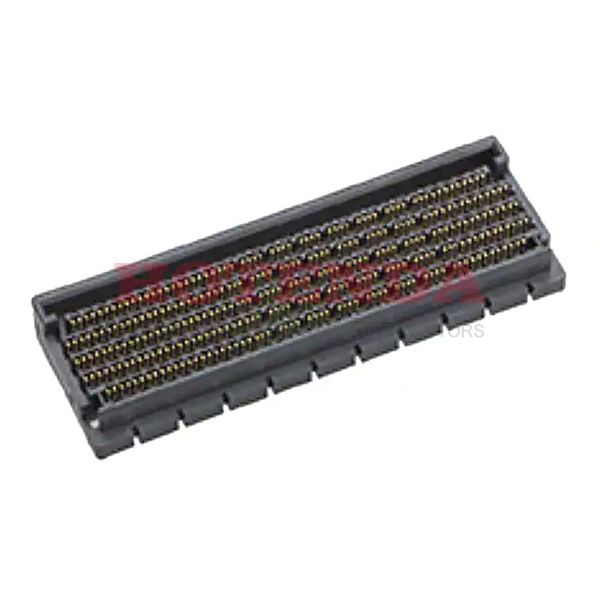

Name: 2034560003
Brand: Molex
SKU: 2034560003
Price: 126.98000 USD
Availability: InStock

new

2034560003

Manufacturer part number:2034560003

Manufacturer:Molex

Description:Self Mating, Non-Gendered Tape & Reel (TR) 11 Rows Surface Mount 699 Positions Mirror Mezz 203456 Gold NOT SPECIFIED

Case Package:SOT-23

Datasheet:2034560003 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Contact Material	NOT SPECIFIED
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
Series	Mirror Mezz 203456
Feature	Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Self Mating, Non-Gendered
Number of Positions	699
Number of Rows	11
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	699
Contact Finish	Gold
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	HERMAPHRODITIC
Contact Finish Thickness	30.0μin 0.76μm
Height Above Board	0.301 7.65mm
Stack Height (Mating)	8mm 11mm
RoHS Status	ROHS3 Compliant

2034560003 Product Details

2034560003 Overview

The product is packaged in Self Mating, Non-Gendered.It has been determined that a Tape & Reel (TR) case is necessary to package the product.This device is mounted in the Surface Mount position.There is a product in the Mirror Mezz 203456 Series.This can be ensured when the system is in operation by maintaining Pick and Place.
