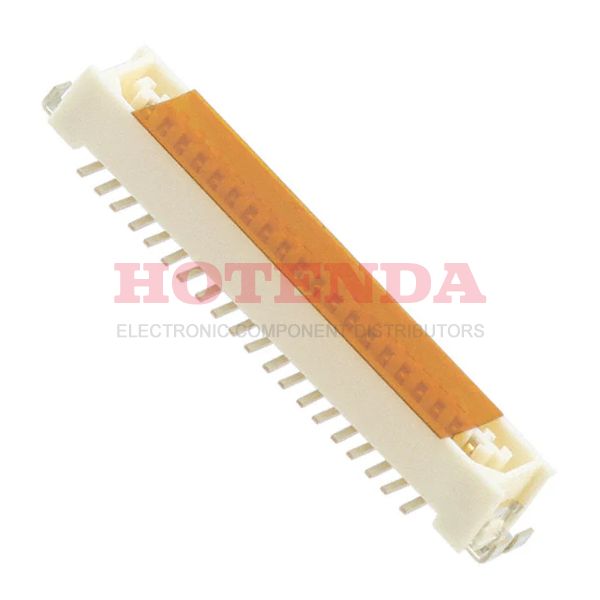

Name: DF9B-41P-1V(32)
Brand: Hirose Electric Co Ltd
SKU: DF9B-41P-1V(32)
Price: 2.07000 USD
Availability: InStock

new-10%

DF9B-41P-1V(32)

Manufacturer part number:DF9B-41P-1V(32)

Manufacturer:Hirose Electric Co Ltd

Description:DF9B-41P-1V(32) datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:DF9B-41P-1V(32) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper
Mount	Surface Mount, Vertical
Mounting Type	Surface Mount
Housing Material	Polyamide
Packaging	Tape & Reel (TR)
Published	2003
Series	DF9
Feature	Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT, Solder
Connector Type	Header, Center Strip Contacts
Number of Positions	41
Number of Rows	2
Gender	Male
Voltage - Rated	150V
Additional Feature	POLARIZED
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.039 1.00mm
Total Number of Contacts	41
Orientation	Straight
Current Rating	500mA
Contact Finish	Tin
Lead Pitch	1mm
UL Flammability Code	94V-0
Housing Color	Beige
Height	3.3mm
Length	24.3mm
Width	4.2mm
Contact Finish Thickness	39.4μin 1.00μm
Height Above Board	0.130 3.30mm
Stack Height (Mating)	4.3mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

DF9B-41P-1V(32) Product Details

DF9B-41P-1V(32) Overview

Packaging is Header, Center Strip Contacts.It has been determined that a Tape & Reel (TR) case is necessary to package the product.Surface Mount indicates that the device is mounted.As a product of the DF9 Series, it can be found in this category.It is possible to maintain Solder Retention when operating.To mount this part, you'll need a Surface Mount, Vertical socket.There are also features like POLARIZED, just to name a few.
