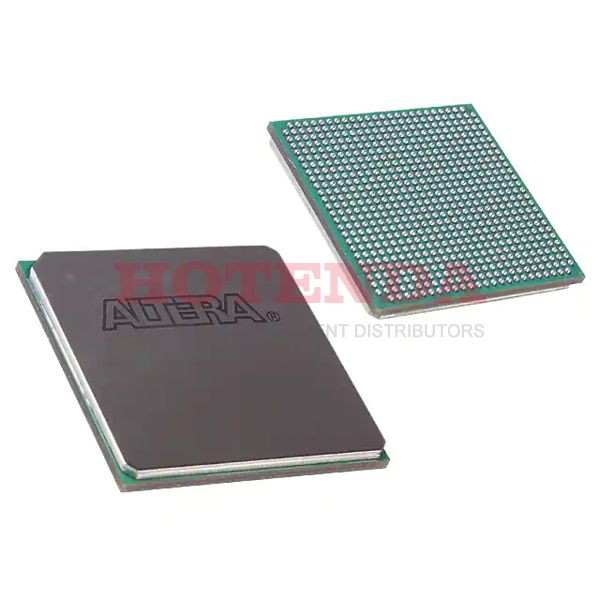

10AX022E3F27E1HG Overview
A 672-BBGA, FCBGA package contains it, and it is available for download. This device features 240 I/Os in order to transfer data in a more efficient manner. A fundamental building block consists of 220000 logic elements/cells. The Surface Mount-slot on the development board allows you to attach the FPGA module. Fpga chips operates wFpga chipsh a supply voltage of 0.87V~0.93V. It is a type of FPGA that belongs to the Arria 10 GX series of FPGAs. During the operation of the system, the operating temperature should remain within the range of 0°C~100°C TJ. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. Having a RAM bit size of 13752320 means that this device will offer you a lot of memory. The FPGA is built as an array of 80330 latches or CLBs.
10AX022E3F27E1HG Features
240 I/Os
Up to 13752320 RAM bits
10AX022E3F27E1HG Applications
There are a lot of Intel 10AX022E3F27E1HG FPGAs applications.
- Security systems
- Medical Applications
- Video & Image Processing
- Broadcast
- Software-defined radio
- Wired Communications
- Server Applications
- Aircraft navigation
- Integrating multiple SPLDs
- Device controllers
