Name: 1053111104
Brand: Molex
SKU: 1053111104
Price: 1.47000 USD
Availability: InStock

new-10%

1053111104

Manufacturer part number:1053111104

Manufacturer:Molex

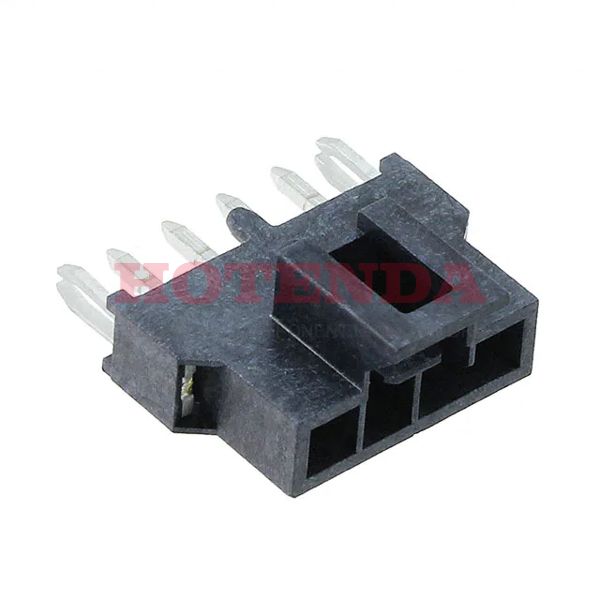

Description:Nano-Fit 105311 Series 1-Row Header Solder Brass Tray Through Hole Tin Liquid Crystal Polymer (LCP) 4-Position Board to Cable/Wire 0.356 9.05mm Height

Case Package:SOT-23

Datasheet:1053111104 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C~105°C
Packaging	Tray
Series	Nano-Fit 105311
Published	2016
Feature	Board Guide, Board Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	4
Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows	1
Voltage - Rated	250V
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Type	Male Pin
Insulation Height	0.356 9.05mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.098 2.50mm
Insulation Color	Black
Contact Length - Post	0.126 3.20mm
Shrouding	Shrouded - 4 Wall
Contact Finish Thickness - Mating	59.0μin 1.50μm
Contact Finish Thickness - Post	59.0μin 1.50μm
Stack Height (Mating)	21.30mm

1053111104 Product Details

1053111104 Overview

Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Nano-Fit 105311 Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Industrial, Medical, Military, Telecommunications.Several benefits come from the Board Guide, Board Lock feature.Devices operate at -40°C~105°C operating temperatures.
