Name: 0878320826
Brand: Molex
SKU: 0878320826
Price: 0.92000 USD
Availability: InStock

new-10%

0878320826

Manufacturer part number:0878320826

Manufacturer:Molex

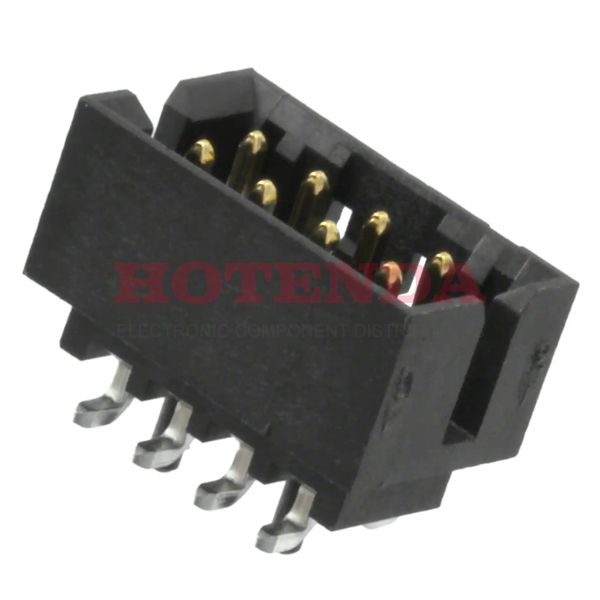

Description:Milli-Grid 87832 Series 2-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Polyamide (PA), Nylon, Glass Filled 8-Position Board to Board or Cable 0.252 6.40mm Height

Case Package:SOT-23

Datasheet:0878320826 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Mounting Option 1	LOCKING
Packaging	Tube
Series	Milli-Grid 87832
Feature	Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	8
Applications	Automotive, General Purpose, Telecommunications
Number of Rows	2
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Type	Male Pin
Total Number of Contacts	8
Insulation Height	0.252 6.40mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.141 3.60mm
PCB Contact Pattern	RECTANGULAR
Operating Temperature (Max)	105°C
Operating Temperature (Min)	-55°C
Rated Current (Signal)	2A
Mating Contact Pitch	0.079 inch
Plating Thickness	30μin
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0878320826 Product Details

0878320826 Overview

The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tube.Product number Milli-Grid 87832 belongs to the Milli-Grid 87832 Series.In addition to Automotive, General Purpose, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Pick and Place feature.
