Name: 0901362202
Brand: Molex
SKU: 0901362202
Price: 2.01000 USD
Availability: InStock

new-10%

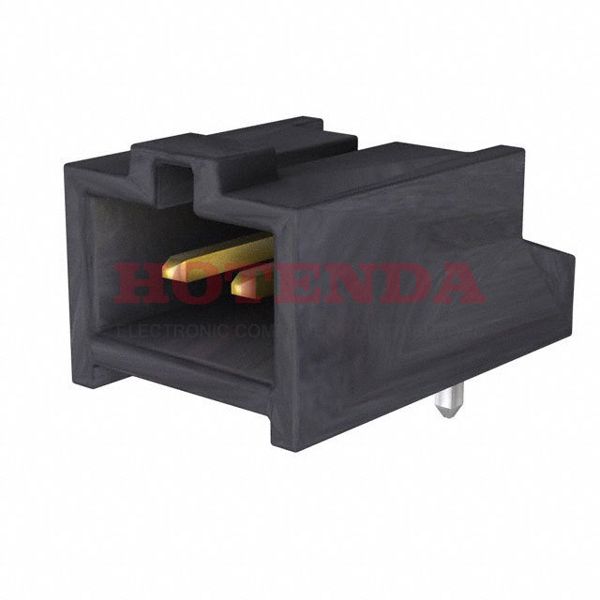

0901362202

Manufacturer part number:0901362202

Manufacturer:Molex

Description:0901362202 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0901362202 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Brass
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Packaging	Tray
Series	C-Grid III 90136
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	2
Applications	Automotive, General Purpose
Number of Rows	1
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.284 7.21mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.114 2.90mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.266 6.75mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	118.1μin 3.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0901362202 Product Details

0901362202 Overview

The packaging contains Header.Mounting type is Through Hole, Right Angle.To package the product, a Tray case is used.This is from the C-Grid III 90136 Series.An application for the device could be Automotive, General Purpose.
