Name: 0878321221
Brand: Molex
SKU: 0878321221
Price: 3.83000 USD
Availability: InStock

new-10%

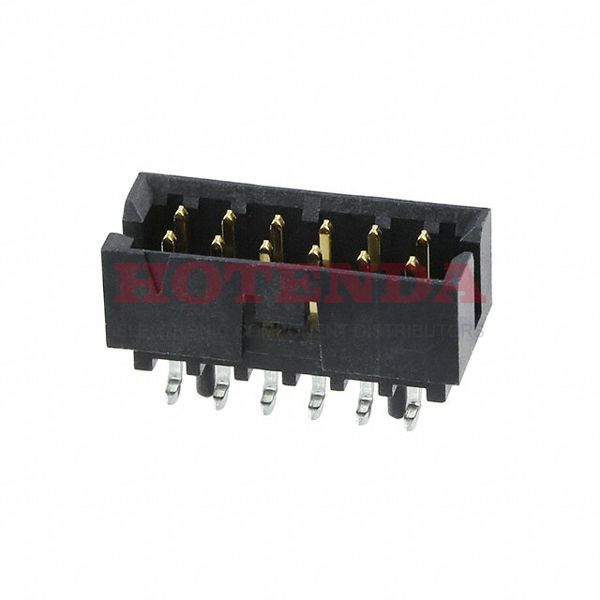

0878321221

Manufacturer part number:0878321221

Manufacturer:Molex

Description:0878321221 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0878321221 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Housing Material	Nylon
Packaging	Tube
Series	Milli-Grid 87832
Feature	Board Guide, Keying Slot
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	12
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Color	Black
Applications	Automotive, General Purpose, Telecommunications
Number of Rows	2
Gender	Male
Voltage - Rated	125V
Fastening Type	Push-Pull
Voltage - Rated DC	125V
Contact Finish - Mating	Gold
Contact Type	Male Pin
Pitch	2mm
Orientation	Vertical
Insulation Height	0.252 6.40mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	2A
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Shrouding	Shrouded - 4 Wall
Lead Pitch	2mm
Number of Contacts	12
Contact Finish - Post	Tin
Contact Length - Mating	0.141 3.60mm
Contact Gender	Male
Insulation Resistance	1GOhm
Number of Circuits	12
Mating Post Length	3.6mm
Glow Wire Compliant	Non-compliant
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

0878321221 Product Details

0878321221 Overview

Packaging for this item is Header.Surface Mount is the type of mounting for the device.We package the product with a Tube case.It's from the Milli-Grid 87832 Series.A temperature below 105°C is best for using it.The device must run at -55°C degrees.A possible application for the device is Automotive, General Purpose, Telecommunications.It is more powerful in many ways due to its Board Guide, Keying Slot feature.There is a mounting hole at Surface Mount.It's got 12 circuits.
