Name: 0702871180
Brand: Molex
SKU: 0702871180
Price: 6.20000 USD
Availability: InStock

new-10%

0702871180

Manufacturer part number:0702871180

Manufacturer:Molex

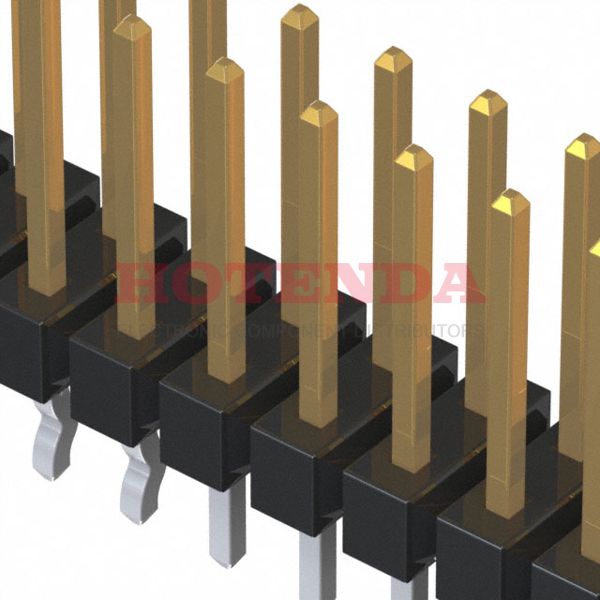

Description:0702871180 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0702871180 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material	Brass
Housing Material	Polymer
Packaging	Bulk
Series	C-Grid 70287
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	70
Max Operating Temperature	120°C
Min Operating Temperature	-40°C
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Additional Feature	STACKABLE
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Vertical
Depth	5.08mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.320 8.13mm
UL Flammability Code	94V-0
Housing Color	Black
Overall Contact Length	0.535 13.59mm
Number of Circuits	68
Max Voltage Rating (DC)	250V
Length	88.9mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0702871180 Product Details

0702871180 Overview

The packaging contains Header, Breakaway.Through Hole is the mount type.A Bulk case is used for packaging.There is a product in the C-Grid 70287 Series.Among other features are STACKABLE, to name only a few.It's best to use it when the temperature is below 120°C.Temperatures below -40°C are required for this device to operate.Here's a possible application for the device: Automotive, General Purpose, Lighting, Medical, Telecommunications.There is a mounting hole at Through Hole.This part has 68 circuits.
