Name: 0702871142
Brand: Molex
SKU: 0702871142
Price: 7.56000 USD
Availability: InStock

new-10%

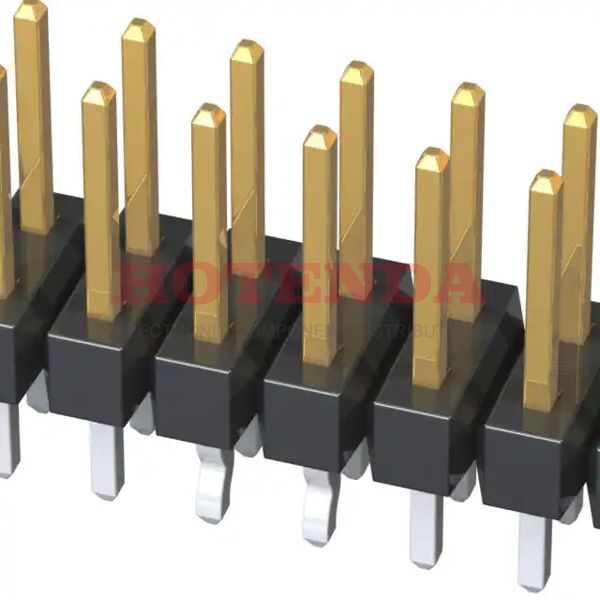

0702871142

Manufacturer part number:0702871142

Manufacturer:Molex

Description:0702871142 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0702871142 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material	Brass
Housing Material	Polymer
Packaging	Bulk
Series	C-Grid 70287
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
Connector Type	Header, Breakaway
Number of Positions	92
Max Operating Temperature	120°C
Min Operating Temperature	-40°C
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Additional Feature	STACKABLE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Vertical
Depth	5.08mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
Housing Color	Black
Overall Contact Length	0.455 11.56mm
Number of Circuits	90
Max Voltage Rating (DC)	250V
Length	116.84mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0702871142 Product Details

0702871142 Overview

This product is packaged in a Header, Breakaway cartonThere is a mounting type of Through Hole for this device.It has been determined that a Bulk case is necessary to package the product.Specifically, it is one of the products in the C-Grid 70287 Series.Other features include STACKABLE, to name just a few.It is best used at temperatures below 120°C.A minimum temperature of -40°C is needed for this device.A possible application of the device would be Automotive, General Purpose, Lighting, Medical, Telecommunications.It is mounted by Through Hole.It has 90 circuits.
