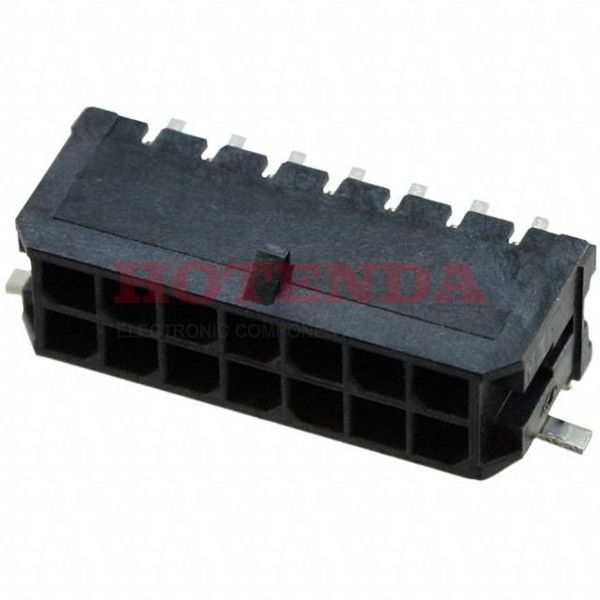

Name: 0430451409
Brand: Molex
SKU: 0430451409
Price: 5.59000 USD
Availability: InStock

new-10%

0430451409

Manufacturer part number:0430451409

Manufacturer:Molex

Description:0430451409 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0430451409 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Brass
Mounting Type	Surface Mount, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Shell Material	POLYETHYLENE
Packaging	Tape & Reel (TR)
Series	Micro-Fit 3.0 43045
Feature	Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	14
Applications	General Purpose, Medical, Military, Telecommunications
Number of Rows	2
Voltage - Rated	600V
Additional Feature	MICRO-FIT 3.0, POLARIZED, SHROUDED
HTS Code	8536.69.40.30
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	8A
Total Number of Contacts	14
Insulation Height	0.290 7.37mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.118 3.00mm
Insulation Color	Black
Row Spacing - Mating	0.118 (3.00mm)
Shrouding	Shrouded - 4 Wall
UL Flammability Code	94V-0
Empty Shell	NO
Contact Finish Thickness - Mating	60.0μin 1.52μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0430451409 Product Details

0430451409 Overview

You get it in Header packaging.A Surface Mount, Right Angle mounting type is specified for the device.We pack the product in a Tape & Reel (TR) case.It is part of the Micro-Fit 3.0 43045 Series of products.Additionally, there are other features, such as MICRO-FIT 3.0, POLARIZED, SHROUDED.There is the possibility of using the device for General Purpose, Medical, Military, Telecommunications.A number of advantages can be derived from its Solder Retention feature.
