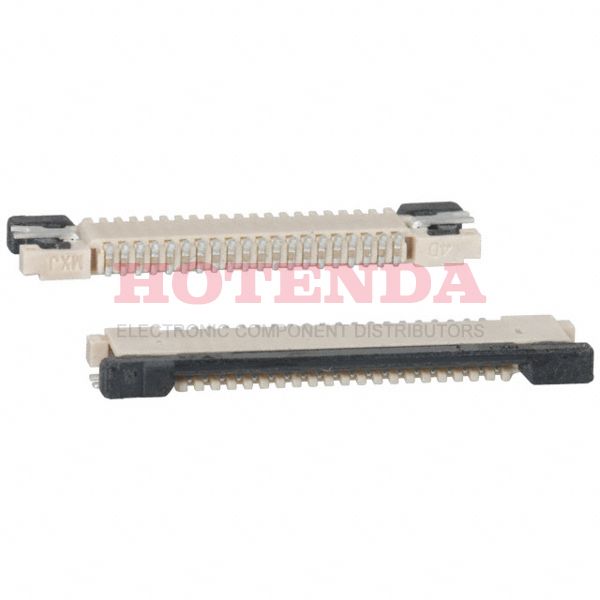

Name: 0545482070
Brand: Molex
SKU: 0545482070
Availability: InStock

new-10%

0545482070

Manufacturer part number:0545482070

Manufacturer:Molex

Description:0545482070 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0545482070 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-20°C~85°C
Packaging	Tape & Reel (TR)
Series	Easy-On 54548
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	20
Voltage - Rated	50V
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Contact Finish	Tin Bismuth
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight, Tapered
Locking Feature	Flip Lock
Contact Finish Thickness	8.00μin 0.203μm
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0545482070 Product Details

0545482070 Overview

Surface Mount, Right Angle is the mounting type for the device.It has been determined that a Tape & Reel (TR) case is necessary to package the product.Among the products in the Easy-On 54548 Series, it is one of the most popular.A number of features make the Solder Retention, Zero Insertion Force (ZIF) feature more powerful.Operating temperature is set to -20°C~85°C.
