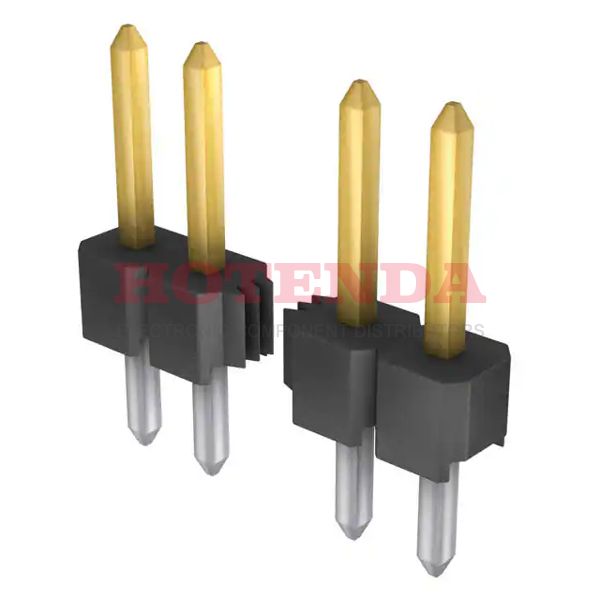

Name: 961132-6404-AR
Brand: 3M
SKU: 961132-6404-AR
Price: 2.54000 USD
Availability: InStock

new-10%

961132-6404-AR

Manufacturer part number:961132-6404-AR

Manufacturer:3M

Description:961132-6404-AR datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from 3M stock available on our website

Case Package:SOT-23

Datasheet:961132-6404-AR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Thermoplastic
Operating Temperature	-25°C~105°C
Packaging	Bulk
Published	2012
Series	961
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	32
Color	Black
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	2A
Pitch	2.54mm
Insulation Height	0.098 2.50mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.130 3.30mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.217 5.50mm
Overall Contact Length	0.445 11.30mm
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	39.4μin 1.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

961132-6404-AR Product Details

961132-6404-AR Overview

Packaging for this item is Header.There is a Through Hole mounting type for the device.Packaging is performed using a Bulk case.It's from the 961 Series.There is a Through Hole mount on the part.Running in -25°C~105°C Operating Temperature.
