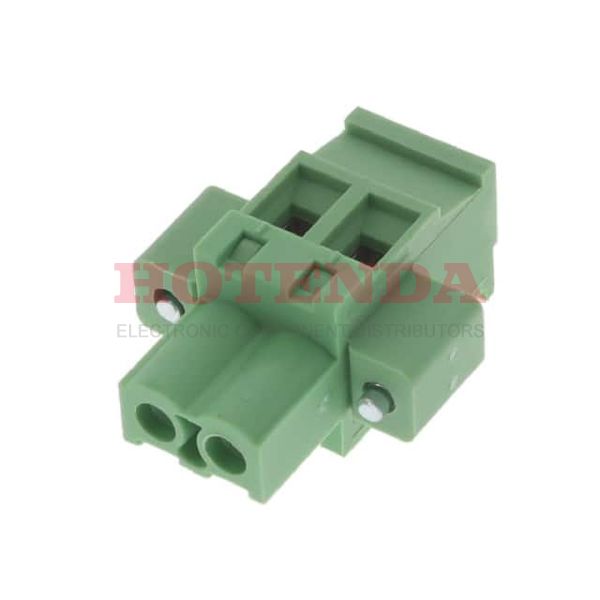

Name: 0395377002
Brand: Molex
SKU: 0395377002
Price: 1.77000 USD
Availability: InStock

new-10%

0395377002

Manufacturer part number:0395377002

Manufacturer:Molex

Description:0395377002 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395377002 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39537
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Type	Plug, Female Sockets
Color	Green
Pitch	0.200 5.08mm
Orientation	Straight
Depth	12.7mm
Insulation Height	1.020 25.91mm
Reach Compliance Code	unknown
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Torque - Screw	0.34 Nm (3.0 Lb-In)
Plug Wire Entry	270°
Wire Strip Length	5mm
Number of Positions Per Level	2
Length	20.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395377002 Product Details

0395377002 Overview

Mounting type Free Hanging (In-Line) is assigned to the device.The product is packaged in a Bulk case.This is from the Eurostyle ESE 39537 Series.A number of advantages can be derived from its Mating Flange, Retention Latches (Non-Wire Side) feature.By Cable, Free Hanging, the part is mounted.-40°C~105°C Operating Temperature is the default operating temperature for the device.You should not supply this chip with more voltage than 300V.Other Plug, Female Sockets products share lots of benefits with this part.
