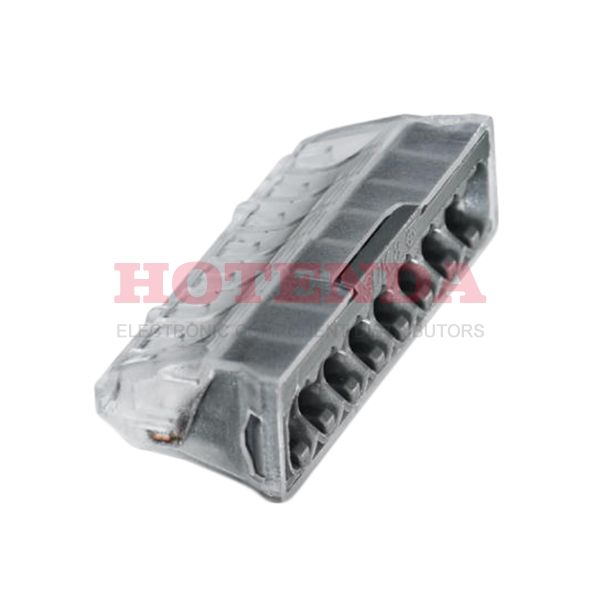

Name: 3240166
Brand: Phoenix Contact
SKU: 3240166
Price: 0.69000 USD
Availability: InStock

new-10%

3240166

Manufacturer part number:3240166

Manufacturer:Phoenix Contact

Description:3240166 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:3240166 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Packaging	Bulk
Published	2011
Series	JBC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	8
Color	Transparent
Voltage - Rated	450V
Insulation Height	0.350 8.89mm
Current Rating	24A
Termination Style	Screwless - Spring Cage, Tension Clamp
Voltage	600V
Number of Levels	1
Current	20A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	20 AWG
Wire Gauge or Range - AWG	16-20 AWG
Voltage - IEC	450V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-2.5mm2
Wire Strip Length	8mm
Current - IEC	24A
Height	8.9mm
Length	15.6mm
Width	39.2mm
Material Flammability Rating	UL94 V-2
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

3240166 Product Details

3240166 Overview

Mounting type Free Hanging (In-Line) is selected for the device.Packaged in a Bulk case.JBC Series product.The part is mounted by Free Hanging.There are a lot of similarities between this part and other Plug, Female Sockets products.
