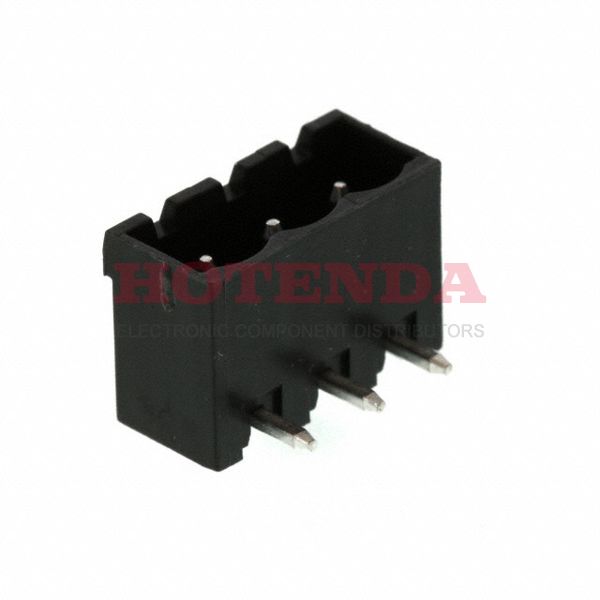

Name: 0395321003
Brand: Molex
SKU: 0395321003
Price: 0.89000 USD
Availability: InStock

new-10%

0395321003

Manufacturer part number:0395321003

Manufacturer:Molex

Description:0395321003 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395321003 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39532
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Black
Number of Rows	1
Gender	Male
Pitch	0.200 5.08mm
Orientation	Horizontal
Depth	12mm
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
Number of Contacts	3
Housing Color	Black
Voltage	300V
Contact Tail Length	0.150 3.81mm
Number of Circuits	2
Max Voltage Rating (AC)	300V
Number of Levels	1
Current	15A
Max Voltage Rating (DC)	300V
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Positions Per Level	3
Header Orientation	90°, Right Angle
Number of Positions Per Level	3
Length	17.24mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

0395321003 Product Details

0395321003 Overview

Mounting type Through Hole is assigned to the device.An Bulk case is utilized for packaging the product.The product is part of the Eurostyle ESE 39532 Series.You should use it at a temperature below 105°C.Temperatures below -40°C are required for this device to operate.Mounted by Through Hole.It consists of 2 circuits.Devices operate at -40°C~105°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
