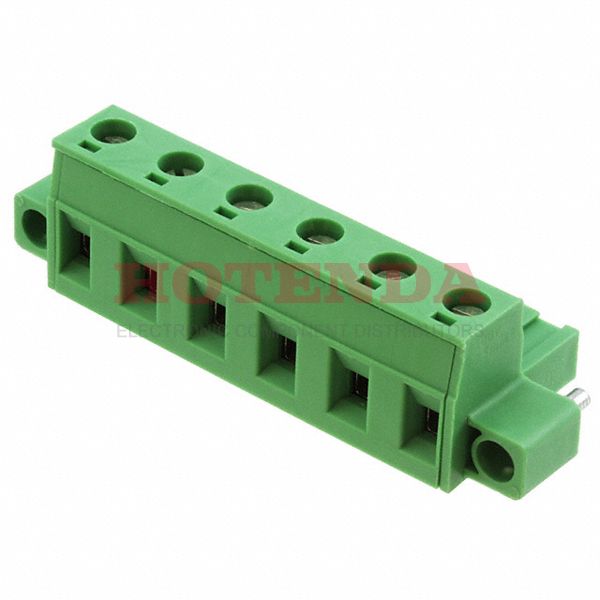

Phoenix Contact

1858808 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1858808 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 167.00001g
PackagingBulk
Published 2011
Series COMBICON GMSTB
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional FeaturePA, 94V-0
Pitch 0.300 7.62mm
Orientation Right Angle
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 6
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Height 18.2mm
Length 15mm
Width 56.11mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:588 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$11.91000$11.91
10$11.58300$115.83
50$10.82560$541.28
100$9.95940$995.94
250$9.20172$2300.43
500$8.76868$4384.34

1858808 Product Details

1858808 Overview


The packaging is Screw, Socket.Free Hanging (In-Line) is the mounting type of the device.An orange Bulk case is used to package the product.This product is part of the COMBICON GMSTB Series.As well as PA, 94V-0, to name a few.In many ways, its Mating Flange feature makes it more powerful.By Free Hanging, Panel it's mounted.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1858808 Features


COMBICON GMSTB series

1858808 Applications


There are a lot of Phoenix Contact 1858808 Terminal Blocks applications.

  • Military Technology
  • Communication
  • Anywhere power is distributed
  • All Electrical Machinery
  • Energy efficient lighting (LED)
  • Electrical substations
  • Control panels
  • Blowers
  • Embedded systems
  • Measuring & Control Technology
