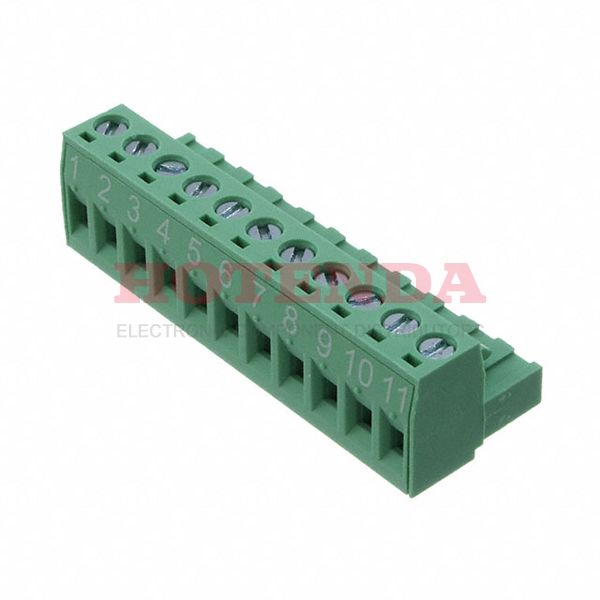

Name: 0395305111
Brand: Molex
SKU: 0395305111
Price: 8.49000 USD
Availability: InStock

new

0395305111

Manufacturer part number:0395305111

Manufacturer:Molex

Description:0395305111 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395305111 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Operating Temperature	-40°C~115°C
Packaging	Bulk
Series	Eurostyle ESE 39530
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Type	Plug, Female Sockets
Color	Green
Gender	Female
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Torque - Screw	0.56 Nm (5.0 Lb-In)
Plug Wire Entry	180°
Wire Strip Length	5mm
Number of Positions Per Level	11
Screw Size	M3
RoHS Status	ROHS3 Compliant

0395305111 Product Details

0395305111 Overview

Mounting type Free Hanging (In-Line) is selected for the device.We package the product with a Bulk case.Product number Eurostyle ESE 39530 belongs to the Eurostyle ESE 39530 Series.This feature makes it more powerful in a number of ways due to its Positions Stamped, Retention Latches (Non-Wire Side) feature.This part is mounted by Cable, Free Hanging. In this case, the device operates at -40°C~115°C Operating Temperature.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
