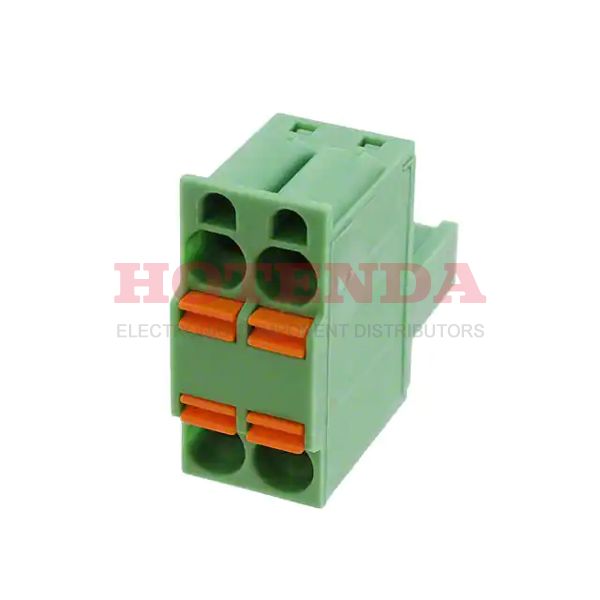

Name: 1962600
Brand: Phoenix Contact
SKU: 1962600
Price: 5.59000 USD
Availability: InStock

new-10%

1962600

Manufacturer part number:1962600

Manufacturer:Phoenix Contact

Description:1962600 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1962600 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	4.759998g
Packaging	Bulk
Published	2002
Series	COMBICON TFKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	22.1mm
Insulation Height	0.870 22.10mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1 (Mate), 2 (Input)
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Positions Per Level	2 (Mate), 4 (Input)
Number of Ways	2
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Number of Positions Per Level	2
Fastening Method	SPRING LOADED
Height	22.1mm
Length	25.7mm
Width	25.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1962600 Product Details

1962600 Overview

Packaging is Socket.Free Hanging (In-Line) is the mounting type of the device.An orange Bulk case is used to package the product.The product is part of the COMBICON TFKC Series.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.There's a Cable, Free Hanging on the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
