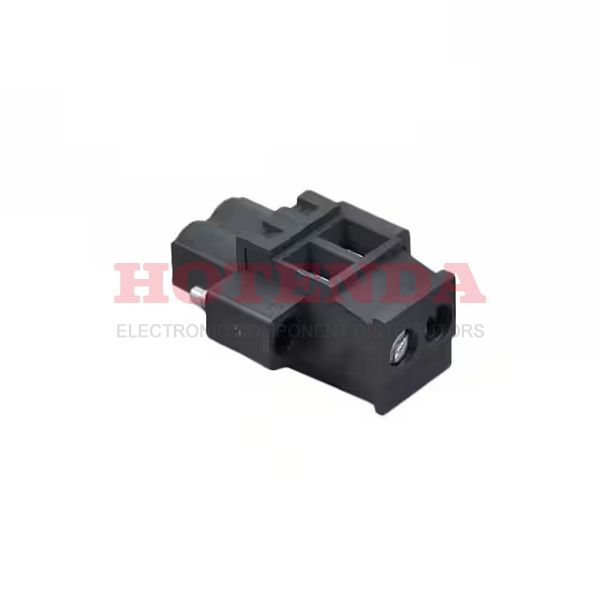

0395272002

0395272002

0395272002

Molex

0395272002 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395272002 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialCopper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~105°C
PackagingBulk
Series Eurostyle ESE 39527
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 2
Color Black
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 1.020 25.91mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 10A
Torque - Screw 0.34 Nm (3.0 Lb-In)
Plug Wire Entry 270°
Wire Strip Length 5mm
Screw Size M3
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:3906 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.658550$1.65855
10$1.564670$15.6467
100$1.476103$147.6103
500$1.392551$696.2755
1000$1.313726$1313.726

0395272002 Product Details

0395272002 Overview


Mounting type is Free Hanging (In-Line).The product is packaged in a Bulk case.This product is from the Eurostyle ESE 39527 Series.In many ways, Mating Flange, Retention Latches (Non-Wire Side) makes it more powerful.Operating temperature is -40°C~105°C.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

0395272002 Features


Eurostyle ESE 39527 series

0395272002 Applications


There are a lot of Molex 0395272002 Terminal Blocks applications.

  • Electrical substations
  • Energy efficient lighting (LED)
  • Military Technology
  • All Electrical Machinery
  • Blowers
  • Transportation
  • Variable speed/frequency drivers
  • Telecommunications
  • Anywhere power is distributed
  • Embedded systems
