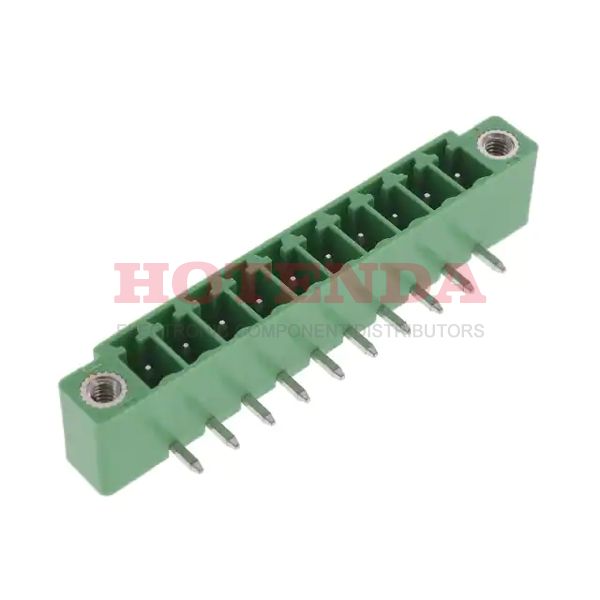

Name: 0395166010
Brand: Molex
SKU: 0395166010
Price: 3.83000 USD
Availability: InStock

new-10%

0395166010

Manufacturer part number:0395166010

Manufacturer:Molex

Description:0395166010 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395166010 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39516
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	10
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Pitch	0.150 3.81mm
Insulation Height	0.270 6.86mm
Termination Style	Solder
Number of Contacts	10
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	8A
Positions Per Level	10
Header Orientation	90°, Right Angle
Number of Positions Per Level	10
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395166010 Product Details

0395166010 Overview

Through Hole is the mounting type.Packaging the product involves using a Bulk case.This product is from the Eurostyle ESE 39516 Series.Temperatures below 105°C are best for using it.A minimum operating temperature of -40°C is required for this device.A number of features make the Mating Flange feature more powerful.Through Hole mounts the part.It operates at an operating temperature of -40°C~105°C.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
