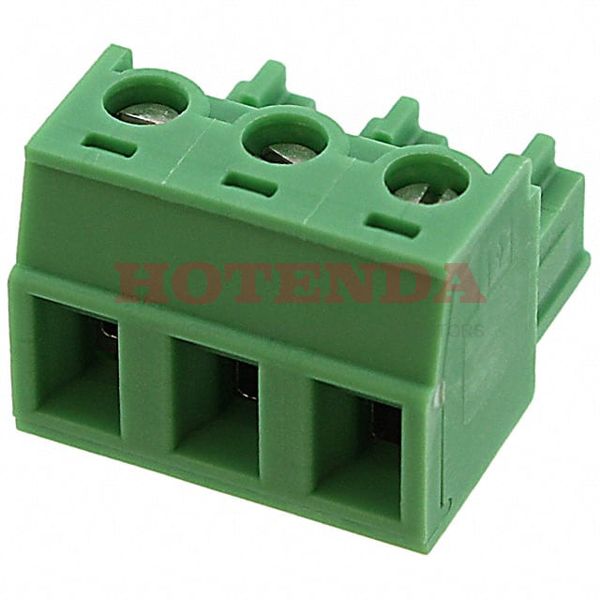

Name: 1900785
Brand: Phoenix Contact
SKU: 1900785
Price: 4.17000 USD
Availability: InStock

new-10%

1900785

Manufacturer part number:1900785

Manufacturer:Phoenix Contact

Description:1900785 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1900785 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	103.999999g
Packaging	Bulk
Published	2010
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
Pitch	0.200 5.08mm
Depth	11.1mm
Insulation Height	0.437 11.10mm
Reach Compliance Code	not_compliant
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	630V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	3
Screw Size	M2
Height	11.1mm
Length	15.5mm
Width	15.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1900785 Product Details

1900785 Overview

You'll get Screw, Socket packages.This device's mounting type is Free Hanging (In-Line).A Bulk case is used for packaging.The product is part of the COMBICON MC Series.Further, there are features such as PA, UL 94V0, to name only a few.By Free Hanging, the part is mounted.Many Plug, Female Sockets products share the same benefits as this part.
