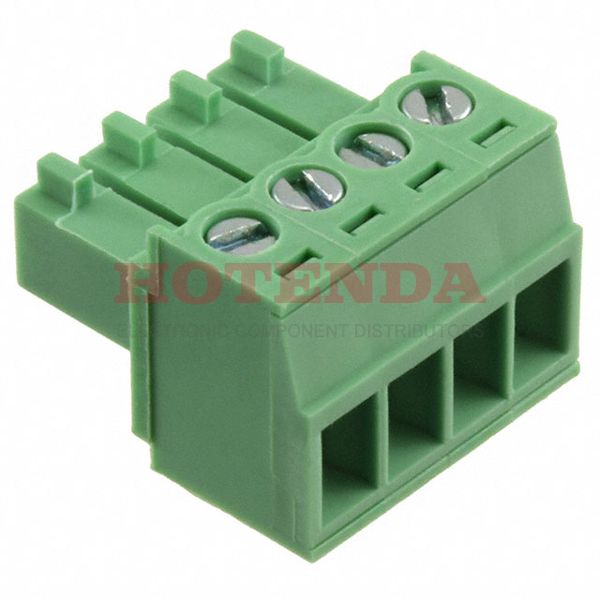

Name: 0395005004
Brand: Molex
SKU: 0395005004
Price: 0.75000 USD
Availability: InStock

new-10%

0395005004

Manufacturer part number:0395005004

Manufacturer:Molex

Description:0395005004 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395005004 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~115°C
Packaging	Bulk
Series	Eurostyle ESE 39500
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Plug, Female Sockets
Number of Positions	4
Color	Green
Voltage - Rated	300V
Pitch	0.138 3.50mm
Insulation Height	0.440 11.18mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Levels	1
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	16-30 AWG
Torque - Screw	0.23 Nm (2.0 Lb-In)
Plug Wire Entry	180°
Wire Strip Length	6.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395005004 Product Details

0395005004 Overview

This device has a Free Hanging (In-Line) mounting type.Packaged in a Bulk case.The product is a member of the Eurostyle ESE 39500 Series.Operating temperature is -40°C~115°C.Other Plug, Female Sockets products benefit from this part as well.
